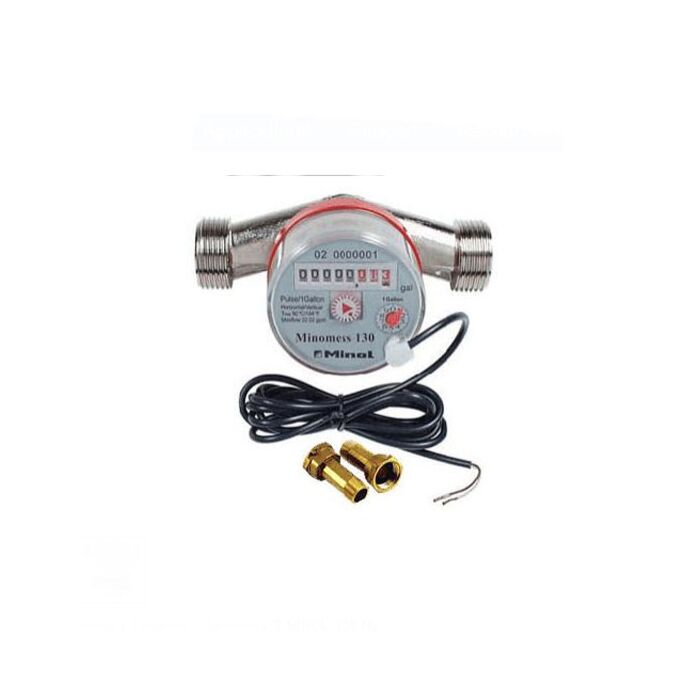

Onset HOBO Data Loggers T-MINOL-130-NL
Water Flow Meter
Order #: T-MINOL-130-NL
Mfg #: T-MINOL-130-NL
Special Price
$207.00
Regular Price
$245.00
Special Price
$207.00
Regular Price
$245.00
Measure cold and hot water flow rates with this compact, affordable water meter. The small-sized T-MINOL-130-NL is designed for deployment in apartments, assisted living communities, and other commercial buildings. Please note, the T-MINOL is configured for use with 3/4" pipes. (Use step-ups or step-downs to deploy the T-MINOL with 1/2" or 1" pipe diameters.)
Availability: Ships in 3-4 weeks
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Puerto Rico only.
Product Highlights
Measures cold and hot water flow rates
Suitable for use in apartments, assisted-living communities, and other types of commercial buildings
Configured for use with 3/4" pipes, use step-downs for smaller pipe.
Measurement range: .25 to 22.0
Accuracy: AWWA spec 97 - 103%
Connection size: ANSI/ASME B1.20.1-1983; 1-11.5 SNPSM thread; 5/8 x 3/4 in ID
Dimensions: length 5.12 in, width 2.5 in, height 3.15 in
Cable length: 59 in.
Water temperature range: 40F to 194F
Meter max reading: 99,999,999 US gal
Resolution: 1 contact closure per gal
Body: nickel-plated brass
Weight: 1.32 lbs
Pressure drop: < 8.70 psi typical @ 22 gpm; < 3.6 psi @ 11 gpm
Reed switch: dry contact
UL Listed
ABSI/NSF61 Certified
