Newport Electronics FMA-A2310

MassFlow,0-15SLM,for N2

Order #: FMA-A2310

Mfg #: FMA-A2310

$873.84

Availability: Ships in 3-4 weeks

Add Calibration

Qty

Tariff fees or manufacture imposed surcharges may be applicable.

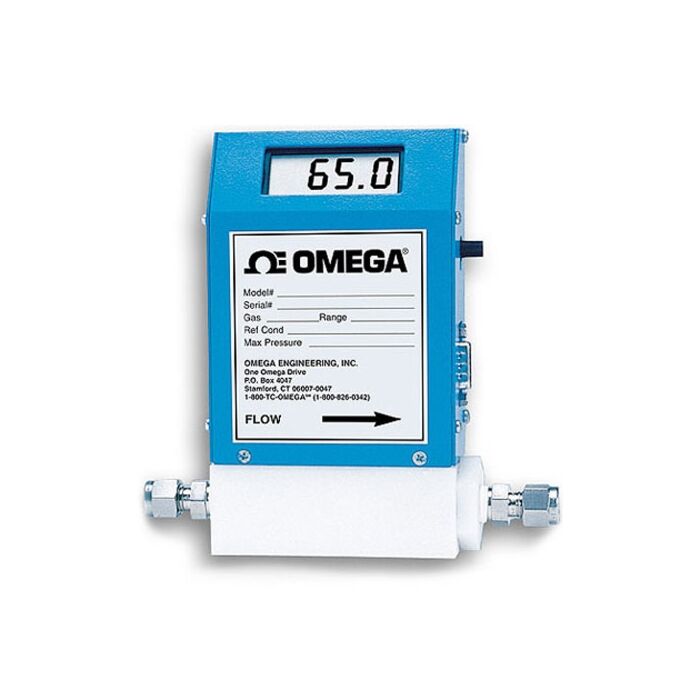

Polyacetal Mass Flowmeter With Display 0 to 15 SLM
±1% Accuracy
Linear Output
Low Cost
Thermal Technology
For Flow Rates up to 75 SLM
Power Supply Included
Comes standard with 5-point NIST cert
Accuracy: ±1% of full scale including linearity
Repeatability: ±0.15% full scale or better
Turndown Ratio: 100:1
Response Time: 5 seconds
Gas Ambient Temperature: 0 to 50°C (32 to 122°F)
Temperature Coefficient: 0.05% full scale per 1°C or better
Pressure Coefficient: 0.01% full scale per psi or better
Minimum Pressure Requirements:
Meters: 1 inch of H2O
Controllers ≤1 SLM: 1 psi
Controllers >20 SLM: 20 psi
Differential Pressure for Mass Flow Controllers:5 LPM: 20 to 40 psi standard
Maximum Gas Pressure: Polyacetal: 250 psig 316 SS: 500 psig
Leak Integrity: 1 x10-6 cc/min of He or better
Wetted Parts: Standard: Polyacetal, FKM O-rings Optional: 316 SS, FKM O-rings
Connections: 1/4 FNPT standard; 1/4" compression fitting for all stainless steel models
Input/Output Connection: 9-pin sub-D connector
Control Signal: 0 to 5 Vdc
Control Valve: Electromagnetic normally closed
Output signal: Linear 0 to 5 Vdc, 1000 Ω min load, 4 to 20 mA, 500 Ω loop resistance
Input Power: Meters: 24 Vdc @ 150 mA, 115 Vac, 220 Vac with AC adaptor Controller: 24 Vdc @ 300 mA, 115 Vac, 220 Vac with AC adaptor
Weight: 1.25 kg (2.75 lb) with power supply
