The Series RM Rate-Master® Polycarbonate Flowmeter is a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This series consists of 2" (51 mm), 5" (127 mm), and 10" (254 mm) scales that can be panel or surface mounted with optional precision metering valves. With a given series, the Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges and easy cleaning.

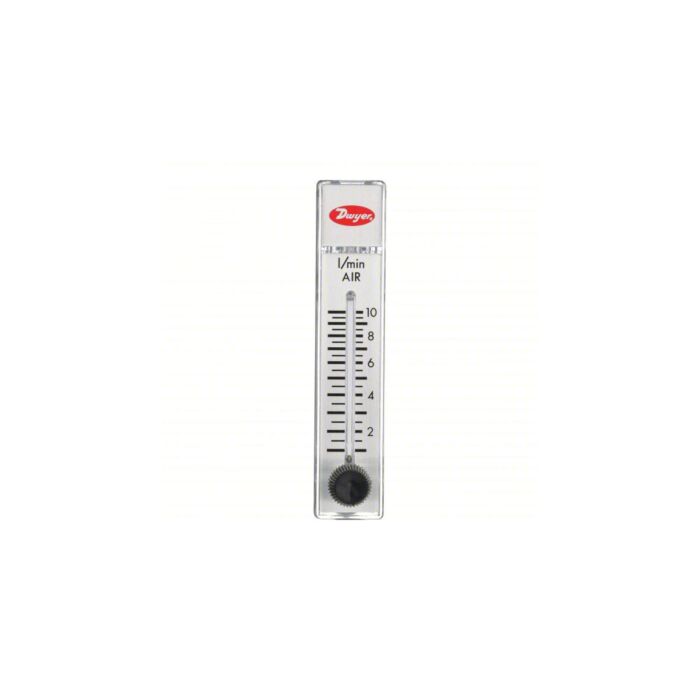

2" (51 mm) Polycarbonate SERIES RM RATE-MASTER®Variable Area Flowmeter
- Eliminate the need for troublesome conversions with direct reading scales
- Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
- Long operation life with durable, shatter-proof polycarbonate body
- High repeatability enabled by precision injection molding around a precision tapered pin
- Increased reading accuracy with special integral flow guides that stabilize float movement
- Save time with instantaneous flow reading with the presence of scale graduations on both side of the indicating tube
- Accuracy: ± 4 %
- Applications: Chemicals, Environmental Monitoring, Medical
- Compliance: RoHS 2
- Compliance Note: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
- Dual Range: No
- Gas Flow, Max: 20 SCFH
- Gas Flow, Min: 2 SCFH
- Liquid Flow, Max: 0 m³/s
- Material Construction Option: N/A
- Materials, Wetted: Aluminum, Buna-N (NBR), Polycarbonate, Stainless Steel
- Media Compatibility: Air
- Operating Temperature, Max: 130°F
- Process Connection Size: 1/8 in
- Process Connection Type: NPT Female
- Proof Pressure: Up to 100 psi
- Scale Length: 2 in
- Valve Type: Stainless Steel Valve
- Weight: 4 oz
Applications
- Medical equipment
- Air samplers
- Gas analyzers
- Pollution monitors
- Chemical injectors
- Cabinet purging
Each Unit Includes
- 1 - RATE-MASTER®Variable Area Flowmeter (RMA-6-SSV)
