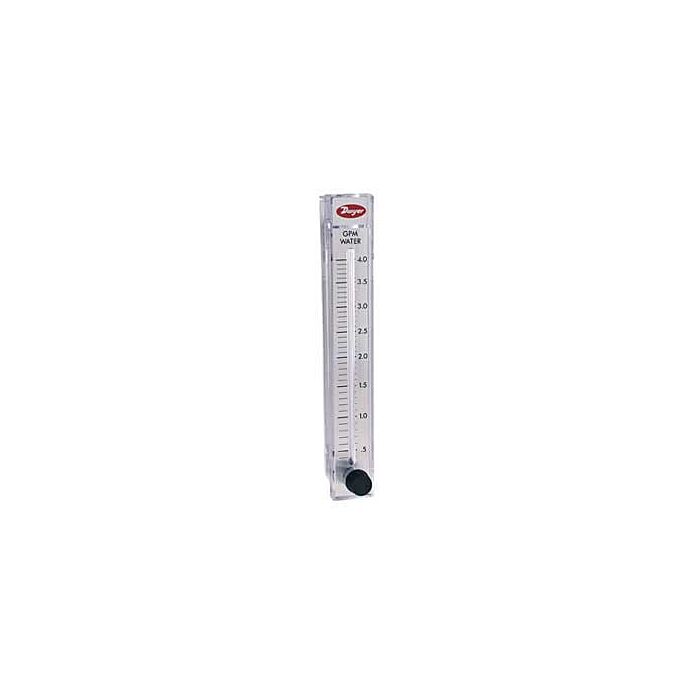

Dwyer Instruments RM-3-SSV

Flowmeter w/SS Valve; Range.2-2

Order #: RMA-3-SSV

Mfg #: RMA-3-SSV

$62.40

Availability: Call for availability

This product is available for shipping to the United States and Canada only.

Flowmeter, range.2-2 SCFH air with Stainless Steel Valve
Service: Compatible gases and liquids
Wetted Materials: Body: Polycarbonate; O-ring: Neoprene & Buna-N; Metal Parts: Stainless steel (except for optional brass valve); Float: Stainless steel, black glass, aluminum, K monel, tungsten carbide depending on range
Temperature Limit: 130°F (54°C)
Pressure Limit: 100 psi (6.9 bar)
Accuracy: RMA: 4%; RMB: 3%; RMC: 2% of full scale
Process Connection: RMA: 1/8"; RMB: 1/4"; RMC: 1/2" female NPT
Weight: RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz (1105.6 g)

Dwyer Instruments Series RM Rate-Master Flowmeters Installation and Operating Instructions
