NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Robust 316L SS oil filled sensor provides shock and vibration resistance ensuring stability in controlling pressure for process applications
A wide range of models and connections that can meet pressure measurement specifications from low to very
Tariff fees or manufacture imposed surcharges may be applicable.
Overview

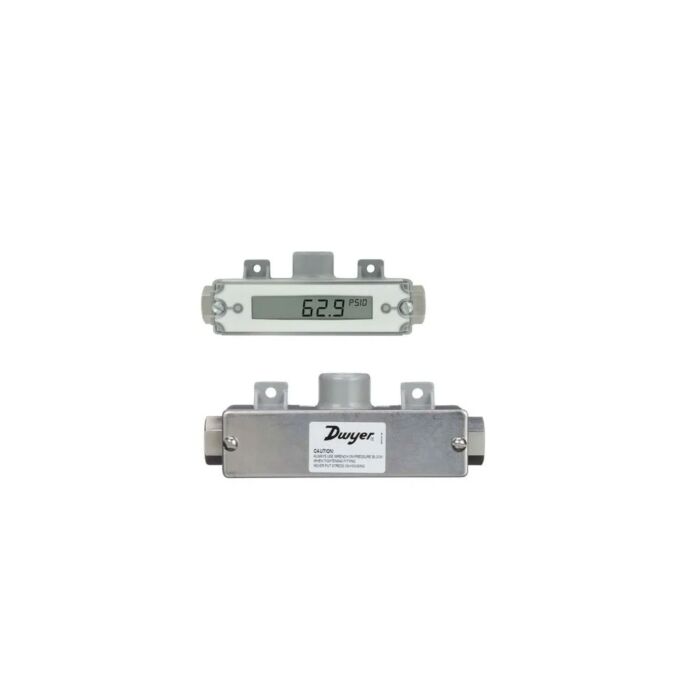

The Series 629C Wet/Wet Differential Pressure Transmitter monitors differential pressure of compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a 4-20 mA or voltage output signal. Small internal volume and minimal moving parts result in exceptional response and reliability. The wiring terminals and zero adjustment button are easily accessed under the removable cover. The Series 629C is designed to meet NEMA 4X (IP66) weatherproof construction.
Versatile, high accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
Removable terminal block reduces wiring difficulties saving installation time
Optional LCD indicator provides local status to identify operational conditions
Optional 3-way valve manifold allows the transmitter to be zeroed without removing it from service and protects the transmitter from damage due to water hammer
Remote sensor option reduces installation labor and material
Accuracy: ± 0.5 %
Accuracy Detail: ± 0.5% FS (includes linearity, hysteresis and repeatability)
