The Series DCT500ADC Timer Controller is a timing system for pulse-jet type dust collectors or pneumatic conveying systems in either continuous or on-demand cleaning applications. It is provided with either 4, 6, or 10 channels. The DCT500ADC was designed for ease of installation in your dust collector system. For installations requiring fewer channels than available on the board, a shorting plug is provided to allow selection of the last used channel. Time-on and time-off settings are selected using two potentiometers. High-limit and low-limit control inputs are provided for use with on-demand systems. When used in a continuous mode the high-limit input is jumpered.
Ideal for pneumatic conveying systems, the Series DCT500ADC Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for 10-35 volt powered receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost.
The DCT500ADC is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are provided for use with on demand systems.
For added safety, the control circuitry including the control inputs are isolated from the line voltage.
To meet your system requirements, an optional weatherproof enclosure is available. For on demand systems, a Dwyer Series A3000 Photohelic® gage or Series 1800 Pressure Switch may be used with the DCT500ADC.
- Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost
- The DCT500A is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers
- High Limit and Low Limit control inputs are provided for use with on demand systems
- For added safety, the control circuitry including the control inputs are isolated from the line voltage
- To meet your system requirements, an optional weatherproof enclosure is available
- For on demand systems, a Dwyer Series A3000 Photohelic gauge or Series 1800 Pressure Switch may be used with the DCT500A
- Output Channels: 4, 6, & 10 channels
- Solenoid Supply: 3A max. per channel
- Fuse: Type 3 AG, 3 A @ 250 VAC
- Temperature Limits: -40 to 140°F (-40 to 60°C)
- On Time: 50 msec to 500 msec
- On Time Accuracy: ±10 msec
- On Time Stability: ±1 ms
- Off Time: 1 second to 180 seconds
- Off Time Accuracy: ±5% of setting
Each Unit Includes

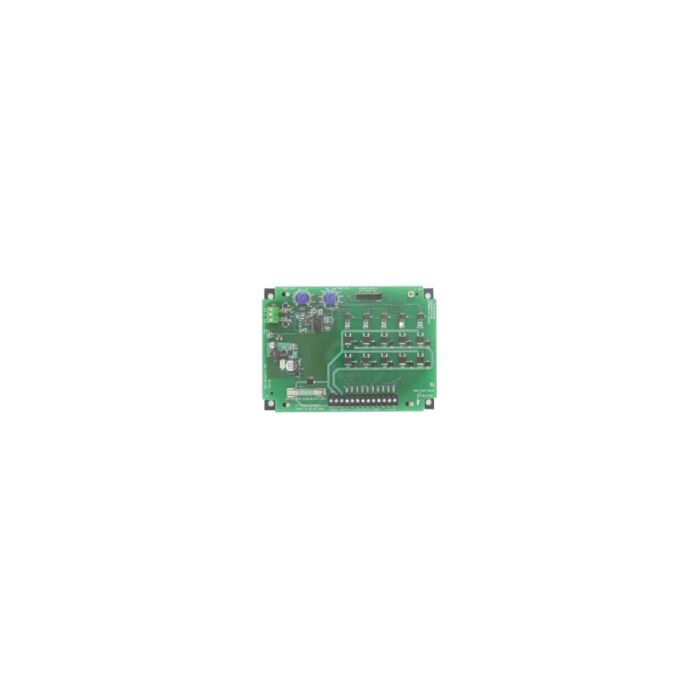

- Dust Collector Timer Controller, 10 Channels. (DCT510ADC)
