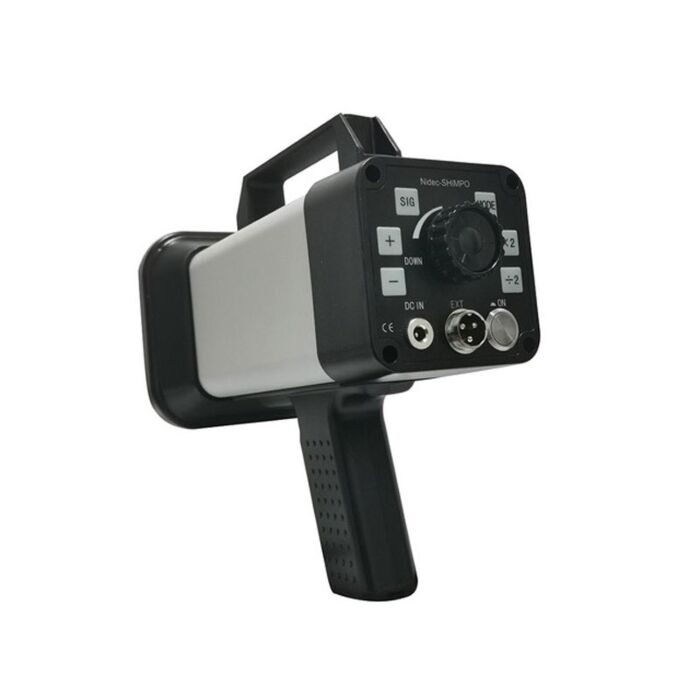

Shimpo DT-735
Xenon Stroboscope, Battery Powered

Order #: DT-735

Mfg #: DT-735

Questions about availability or need help? Contact Us:

(800) 633-0561
$575.00

Shimpo DT-735

Xenon Stroboscope, Battery Powered

Order #: DT-735

Mfg #: DT-735

$575.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

The DT-735 is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement. Constructed with a rugged, metal enclosure, the DT-735's withstand harsh industrial usage. The internal rechargeable battery and included top and bottom handles aid in portability and usage flexibility. The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production. These features make the DT-735 ideal for quality inspection and preventive maintenance of automated motion equipment.

Features

  • Bright LED Display aids viewing in poorly lit areas
  • Light Weight, compact design
  • Easy adjustment with flash dial combined with x2/divide 2 and fine tuning +/- buttons enables precise flash setting
  • Internal, fast-charge rechargeable battery supply
  • Includes top and bottom handle to allow user operation preference
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Shimpo FLASHTUBE735 Spare Flashtube For DT-735
    Shimpo FLASHTUBE735
    Spare Flashtube for DT-735

    Order #: FLASHTUBE735

    Mfg #: FLASHTUBE735

    Availability: Ships in 3-4 weeks
    $47.00
  2. Shimpo BAT-735 Replacement Battery For DT-735 and DT-311D
    Shimpo BAT-735
    Replacement Battery for DT-735 and DT-311D

    Order #: BAT-735

    Mfg #: BAT-735

    Availability: Ships in 3-4 weeks
    $75.00
  3. Shimpo 735-EXTSIG-CBL 3 Pin External Signal Input Cable For DT-735 and DT-311D
    Shimpo 735-EXTSIG-CBL
    3 Pin External Signal Input Cable for DT-735 and DT-311D

    Order #: 735-EXTSIG-CBL

    Mfg #: 735-EXTSIG-CBL

    Availability: Ships in 3-4 weeks
    $70.00
Flashing Range 60-12,000 fpm (flashes per minute)
Accuracy ±0.01% F.S.
Resolution 0.1 from 60-6,000; 1 from 6,001-12,000
Display 5 digits 0.4" (10 mm) height
Flashtube Power/Life Xenon ≤ 45W / 50,000,000
Flash Duration 10-30 µs automatically adjusts with flash rate
External Trigger Input 5 V dc ~ 12 V dc pulse signal input (high level trigger) from sensor
Sensor Power Supply 12 V dc up to 50 mA
Lux Rating 8" (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5" (400 mm) irradiation diameter
20" (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5" (600 mm) irradiation diameter
Battery Ni-MH
Battery Life 1.5 to 2 hours depending on settings
Time to Charge Battery 5 hours to full charge
Power Requirement 100-240 VAC 50/60 Hz
Operating Temperature 32 - 104°F ( 0 - 40°C )
Dimensions 9.8 x 4.7 x 4.7" (250 x 120 x 120 mm)
Product Weight 2.75 lb (1.25 kg)
Package Weight 4.1 lbs (1.86 kg)
Certification CE, RoHS
Included Accessories Upper and Lower Handle, AC converter charger with cable, 3 pin female M16 threaded connector
