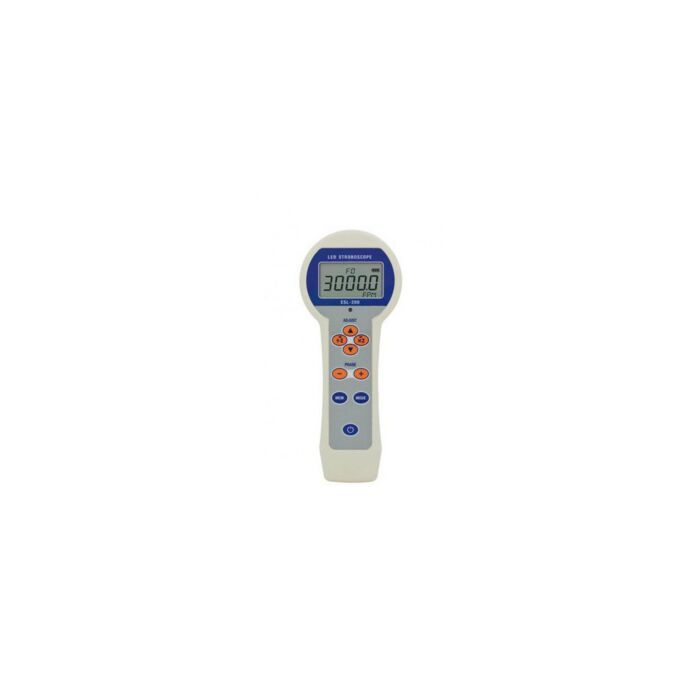

ESL-200-UV is a battery operated, UV LED stroboscope designed to inspect security print elements using UV-visible ink. The ESL-200-UV features a six 390nm UV LED array, 9 flash rate memory and rechargeable battery. The ESL-200-UV LED Stroboscope is compact and fits in a pocket. ESL-200-UV features adjustable flash duration. For most applications standard flash duration works without adjustment. For ultra high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image appears sharper. The external trigger immediately synchronizes the strobe with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included.
- Auto wide measuring range – Up to 150,000 FPM/RPM
- Store 9 flash rates in memory for quick retests
- Tripod mountable
- Push button operation with x2 and ÷2 buttons
- Phase Shift 0 to 359° in 17deg; increments
- Extended battery life: 5 hours continuous use 6,000 FPM/RPM
- Power save mode: 10 hours continuous use 6,000 FPM/RPM
- Highly stable drift free operation
- Rugged aluminum housing, compact size, ergonomic design
- Easy-to-read 5 digit 12 mm high LCD
Applications
- Security Printing Inspection
- Printing & Packaging Quality Control
- Rotating / Moving Machinery Inspection (with UV markings)
- Industrial Maintenance
- Research & Education
- Fluorescent Material Testing
Each Unit Includes
- Pocket Ultraviolet LED Stroboscope
- AC Adapter/Charger
- Calibration Certificate Traceable to NIST
- Carrying Case
