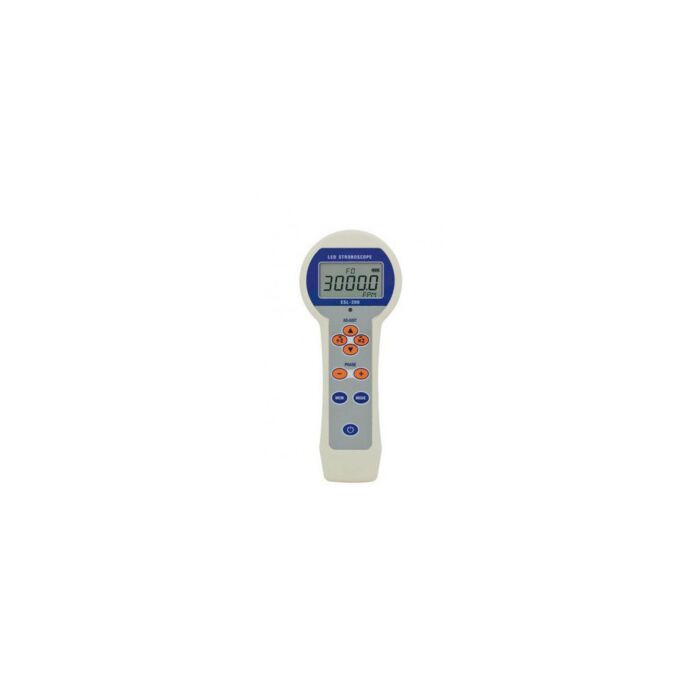

ESL-200 is a super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating, and linear motion in a variety of production, quality control, and academic applications.
The ESL-200 stroboscope features a bright long-lasting LED light source and is designed for measuring rotating as well as reciprocating and linear motion in production, quality control, and preventive maintenance applications. Unit features a wide measuring range, adjustable flash duration functionality for sharper images, and selectable units (FPM or Hz). The ¼"–20 UNC thread allows tripod mounting.
For most applications standard flash duration works without adjustment. For ultra-high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image appears sharper. ESL-200 features adjustable flash duration.
- High efficiency LED solid-state light source
- Extended battery life of 6 hours continuous use at 6,000 fpm/rpm
- Pulse Width Modulation for sharp images at high speed
- Highly stable drift free operation
- Auto wide measuring range - up to 150,000 fpm/rpm (over 100,000 display flashes)
- Push button operation with x2 and ÷2 buttons for easy and precise adjustment
- 359° Digital phase shift adjustment by 1° increments
- Store up to 9 flash rates in memory for records or quick retests (Restarts at the last flash rate)
- Rugged aluminum housing compact size weighs only 1.2 lb (540 g)
- Easy-to-read 5 digit 0.47" (12 mm) high LCD
- External trigger input and output
- Tripod mountable
Applications
- Security Printing Inspection
- Printing & Packaging Quality Control
- Rotating / Moving Machinery Inspection (with UV markings)
- Industrial Maintenance
- Research & Education
- Fluorescent Material Testing
Each Unit Includes
- LED Stroboscope and Tachometer
- AC Adapter and Charger
- Plastic Carrying Case
