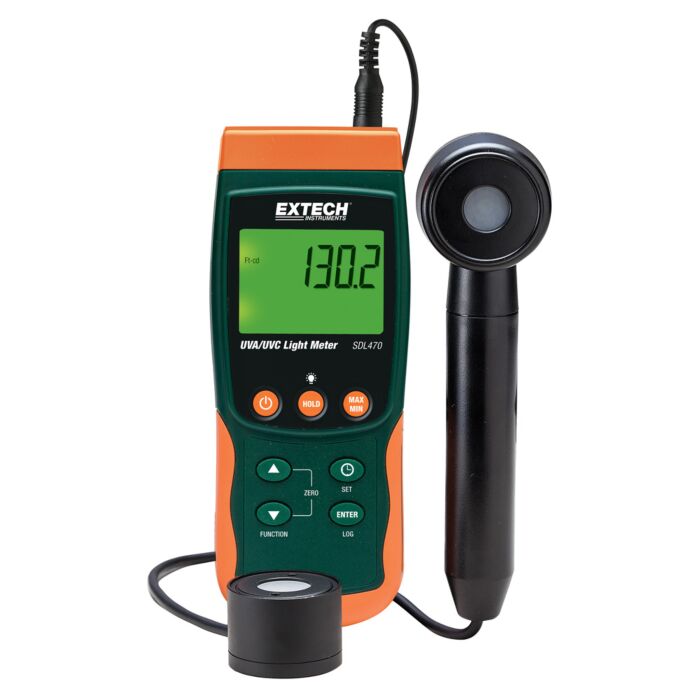

Extech SDL470-NISTL

UVA/UVC Light Meter/Datalogger w/NIST

Order #: SDL470-NISTL

Mfg #: SDL470-NISTL

Questions about availability or need help? Contact Us:

(800) 828-1470
$1,099.00

Extech SDL470-NISTL

UVA/UVC Light Meter/Datalogger w/NIST

Order #: SDL470-NISTL

Mfg #: SDL470-NISTL

$1,099.00
Availability: Item ships in about Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source
  • UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source
  • Cosine correction filter and metal housing
  • Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
  • Offset adjustment used for zero function or to make relative measurements
  • Adjustable data sampling rate from 1 to 3600 seconds
  • Stores 99 readings manually
  • Type K/J Thermocouple input for temperature measurements (probes sold separately)
  • Large backlit LCD display
  • Record/Recall MIN, MAX readings, Data Hold plus Auto power off with disable function
  • Complete with built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, Universal AC adaptor, 6 x AA batteries, and NIST Certificate

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Specifications Range Max Resolution Basic Accuracy
UVA Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
UVC Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
Frequency Bandwidth 365nm (UVA); 254nm (UVC)

Type K Temperature -148 to 2372°F (-100 to 1300°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Type J Temperature -148 to 2192°F (-100 to 1200°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Memory Manual: 99 data readings; Includes SD memory card for datalogging

Dimensions/ Weight 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)/ 16.2oz (475g)
