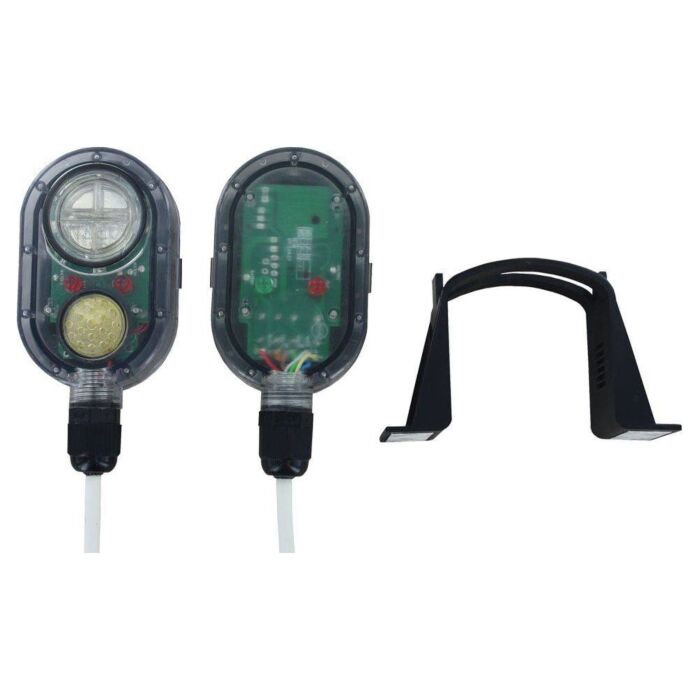

Dwyer Instruments WD3-LP-D2 Water Leak Detectors, 30 mA

The Series WD3 Water Leak Detectors protect equipment from water damage by detecting the presence of water. Model WD3-BP-D1-A is battery powered, all others require AC or DC supply voltages.

• Audible and visual alerts provide local indication of the alarm condition and internal switch will give remote indication or control to prevent further buildup of water
• Sensing height can be adjusted as low as 1/32" (0.79 mm) using the included adjustable mounting bracket
• Mounting bracket can attach to any flat surface by either using the attached adhesive strips or mounting screws for easy installation

• Cable Length: 4.9 ft
• Compliance: CE
• Electrical Connection: Cable
• Enclosure Ratings: IP68, NEMA Type 6P
• LED Indicators: Water Level: Red LED, Power Condition: Green LED
• Materials: ABS
• Media Compatibility: Acid Solutions, Conductive Liquids, Saltwater, Water
• Operating Temperature, Max: 122 °F
• Operating Temperature, Min: 32 °F
• Power Consumption: 30 mA
• Sensing Gap: 1/32" min
• Supply Power Type: AC/DC
• Supply Voltage: 24 Vac/ 11 to 27 Vdc
• Switch Rating: 1 A @ 24 Vac/Vdc
• Switch Type: DPDT
• Tape Length: 0 ft
• Weight: 4.85 oz
• Wire Gauge: 22 AWG

Applications

• AHU drip pans
• Radiant floors
• Data centers
• Sump pumps
• Drains

Each Unit Includes

• 1 - Water Leak Detector(WD3-LP-D2)
