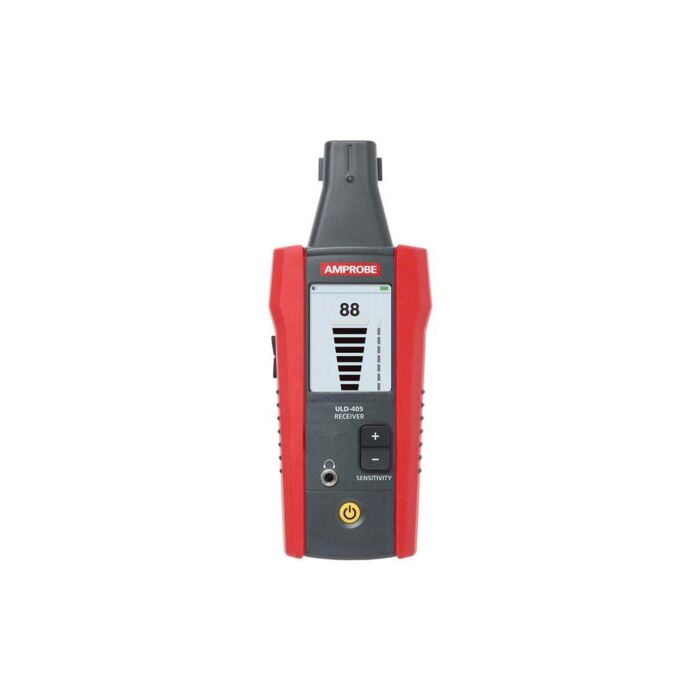

Amprobe ULD-405

Ultrasonic Leak Detector, 20 kHz - 90 kHz frequency range

Order #: ULD-405

Mfg #: 5236025

Questions about availability or need help? Contact Us:

(800) 633-0561
$599.99

Amprobe ULD-405

Ultrasonic Leak Detector, 20 kHz - 90 kHz frequency range

Order #: ULD-405

Mfg #: 5236025

$599.99
Availability:
In stock
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

When equipment begins to fail due to an air or gas leak, it emits an ultrasonic sound wave that is above the natural range of human hearing. The ULD-405 Ultrasonic Leak Detector convert this ultrasonic sound into a signal that can be used to pinpoint the exact location of a leak, vibration or discharge. See the strength of the leak clearly on the large LCD display bargraph and identify the source of the leak by listening to the converted audible sound emitted via the headphones. When pressure is not sufficient enough to detect or verify a leak with the Receiver alone, use the Transmitter to generate the ultrasonic signal (included with the ULD-420 kit). In extremely noisy environments where there is strong ultrasonic noise generated by running machinery or equipment, the Receiver's filter function can filter out up to three main noise frequencies

  • 20 kHz to 90 kHz frequency range: optimal range for detecting a variety of leakage events
  • 2.5" LCD display with bargraph
  • Sensitivity and volume controls
  • Portable Earbuds (for use with hard hat)

Key Attributes

  • Sample Frequency: 20 kHz to 90 kHz
  • Display: Receiver 240x320 pixels (RGB) TFT-LCD True Display Color
  • Adjustments Control: Signal Sensitivity, Volume
  • Accessories Included: Receiver, Earbuds, Parabola, Tubing Adapter, Tubular Extension, Carrying Case, AA Batteries, Manual

Key Uses for this Product

  • Detection of compressed air, vacuum and gas leaks
  • Detects the ultrasonic noise created by pressure or vacuum leaks of any gas, regardless of type: CFC's, HFC's, Nitrogen, CO2, Steam, etc.
  • Test and locate with a transmitter (separate accessory) unit pressurized air lines, refrigeration systems and steam lines for air leaks
  • Unaffected by contaminants, or windy conditions

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Sensitivity Adjustment -
Volume Adjustment -
Earphone Jack (3.5 mm) -
Display Size LCD 2.5 in (6.35 cm)
Display Dimensions 1.45 x 1.93 in (36.72 x 48.96 mm)
Display Resolution 240(RGB) x 320 pixels
Display Type TFT-LCD (262 K)
Display Color True, 16bit/color
Frequency Range 20 kHz to 90 kHz
Power Supply 4 x 1.5 V AA (LR6) alkaline batteries
Power Consumption (typical) 75 mA
Battery Life (typical) 105 hours (Alkaline)
Low Battery Indication -
Weight Approx. 0.518 lb (0.235 kg)
Dimensions 7.547 x 2.984 x 1.791 in (183 x 75 x 43 mm)
APO function 60 minutes when in idle
Operating Temperature -4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C)
Operating Humidity
Pollution Degree 2
Protection IP40
Certifications CE
Electromagnetic Compatibility (EMC) EN 61326-1 Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1] [1] This product meets requirements for industrial (Class A)electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
