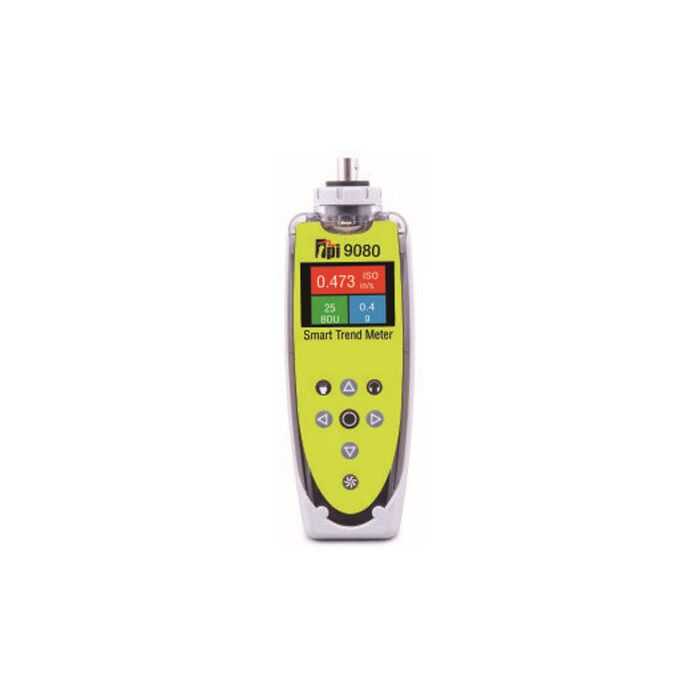

Test Products International 9080-TPI

SMART TREND VIBRATION METER

Order #: 9080-TPI

Mfg #: 9080

Questions about availability or need help? Contact Us:

(800) 633-0561
$995.00

Test Products International 9080-TPI

SMART TREND VIBRATION METER

Order #: 9080-TPI

Mfg #: 9080

$995.00
The TPI 9080 is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration signals at the push of a button. Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 7™ compatible.
Availability: Ships in 2-3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Collect data
  • Trend data using VibTrend software
  • Standard Cable mounted accelerometer with magnet
  • Built-in Bluetooth communication capability
  • USB docking station to download to a PC
  • ISO built-in Alarms
  • Easily identify bearing problems with BDU Reading
  • Easily identify problems with built-in band tilters: 1X (unbalance) 2X (misalignment) 3X (looseness)
  • 800 line FFT (spectrum)
  • Listen to bearing noise with optional Bluetooth headphones
  • Ruggedized IP67 case
  • 3-year Limited Warranty

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Specifications
Size  200 mm x 60mm x 26mm
 Weight  280g (not including magnet)
 Environmental:
 Water, Sand & Dust:  IP67 Waterproof
 Operating  0°C to 50°C
 Storage  -20°c to 70°C
 Power supply  2 x AA batteries
 Battery life  Auto power OFF - typically 20 hours continuous operating time
 depending on brightness setting.
 Frequency range  2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU)
 Max frequency resolution

 1.25 Hz @ 800 lines FFT setting

 Acceleration in g
 Velocity in mm/s (or inch/s)
 Bearing noise in BOU (bearing damage units)
 Displacement (mm, microns, inch)

 Displayed Frequency Units  Hertz (Hz), RPM or CPM
 Input range  User selectable with accelerometer sensitivity
 Dynamic range  96 dB (0.01g resolution)
 VA diagnostic bands (RPM = run speed)  Unbalance 1x RPM
 Alignment 2x RPM
 Looseness 3x RPM
