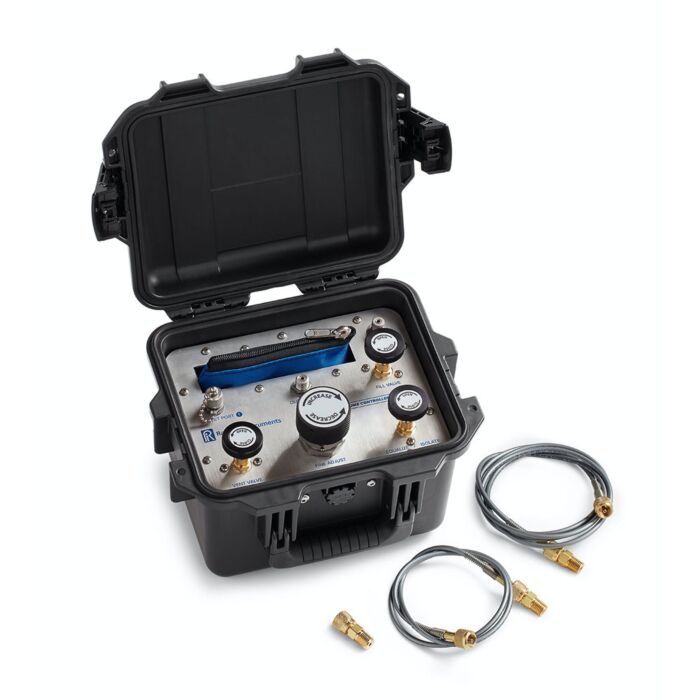

Ralston Instruments QTVC-EN-KIT1-6-3

ControlPak Press.Cntrlr.6ft/3ft Hses,1/8"NPTM,1/4"NPTM,1/4"NPT

Order #: QTVC-EN-KIT1-6-3

Mfg #: QTVC-EN-KIT1-6-3

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,052.80

Ralston Instruments QTVC-EN-KIT1-6-3

ControlPak Press.Cntrlr.6ft/3ft Hses,1/8"NPTM,1/4"NPTM,1/4"NPT

Order #: QTVC-EN-KIT1-6-3

Mfg #: QTVC-EN-KIT1-6-3

$2,052.80
Availability: Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

ControlPak Pressure Controller, 1/8MNPT, 1/4MNPT, 1/4FNPT gauge conn., 6ft and 3ft hoses

Perform both ultra-precise low pressure differential or high pressure static pressure calibrations with nitrogen using the same device with an external pressure calibrator

Each Unit Includes

  • Pressure Controller - ControlPak Manual Pressure Controller (QTVC-EN)
  • Reference Connection - 1/8" male NPT x female Quick-test, no check-valve, brass (QTHA-1MBA)
  • Reference Connection - 1/4" male NPT x female Quick-test, no check-valve, brass (QTHA-2MBA)
  • Reference Connection - 1/4" female NPT x female Quick-test, no check-valve, brass (QTHA-2FBA)
  • Hose - Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long (QTQT-HOS-6ft)
  • Hose - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
  • Adapter - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
  • Adapter - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
  • Bag - Zippered bag to hold hose and adapters, nylon (SM-0084)

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Media Compatibility Air, Inert Gas
Inlet Port Male Quick-test
Outlet Port Male Quick-test
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Vacuum 10 InHg / 33.9 kPa
Materials ABS Plastic, Anodized Aluminum, Brass, Plated Steel, Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Hose 1 Quick-test Hose, Brass ends, 6ft / 1.9m long
Hose 2 Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure Reference None
Process Connection None
Reference Connection None
Country of origin USA

Pressure Controller QTVC-EN

Weight 8.71 lbs / 3.95 kg
Length 11.8 in / 30 cm
Width 9.8 in / 25 cm
Height 7.7 in / 20 cm
Country of origin USA
Fine Adjustment Resolution 0.0005 PSI / 0.00 mbar / 0.00 kPa
Inlet Port Male Quick-test
Materials ABS Plastic, Anodized Aluminum, Powder Coated Steel, Stainless Steel, Zippered Nylon
Max Operating Temperature 130 °F / 54 °C
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Vacuum 10 InHg / 33.9 kPa
Media Compatibility Air, Inert Gas, Natural Gas
Min Operating Temperature 0 °F / -18 °C
Outlet Port Male Quick-test with cap and chain
Pressure Media Nitrogen, inert gas
Seal Materials Buna-N, Delrin, Teflon

Reference Connection QTHA-1MBA

Length 1.55 in / 40 mm
Width 0.7 in / 18 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector 1/8" Male NPT (ASME B1.20.1)
End 2 Connector Female Quick-test

Reference Connection QTHA-2MBA

Length 1.68 in / 43 mm
Width 0.7 in / 18 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector 1/4" Male NPT (ASME B1.20.1)
End 2 Connector Female Quick-test

Reference Connection QTHA-2FBA

Length 1.52 in / 39 mm
Width 0.75 in / 20 mm
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Wrench Size 3/4 In / 20 mm
Wrench Size 19 mm / 23/32 in
End 1 Connector 1/4" Female NPT (ASME B1.20.1)
End 2 Connector Female Quick-test

Hose QTQT-HOS-6ft

Burst Pressure 27000 PSI / 1860 bar / 185 MPa
Color Silver
Country of origin USA
Fluid Media Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Inner Diameter 0.08 In / 3.00 mm
Length 6 ft / 2.00 m
Materials Brass
Max Operating Temperature 140 °F / 60 °C
Max Pressure 6900 PSI / 475 bar / 48 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature -40 °F / -40 °C
Minimum Bend Radius 1 In / 26 mm
Outer Diameter 0.2 In / 6.00 mm
Type QT
Hose End 1 Female Quick-test, brass
Hose End 2 Female Quick-test, brass

Hose QTQT-HOS-3ft

Burst Pressure 27000 PSI / 1860 bar / 185 MPa
Color Silver
Country of origin USA
Fluid Media Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Inner Diameter 0.08 In / 3.00 mm
Length 3 ft / 92 cm
Materials Brass
Max Operating Temperature 140 °F / 60 °C
Max Pressure 6900 PSI / 475 bar / 48 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature -40 °F / -40 °C
Minimum Bend Radius 1 In / 26 mm
Outer Diameter 0.2 In / 6.00 mm
Type QT
Hose End 1 Female Quick-test, brass
Hose End 2 Female Quick-test, brass

Adapter QTHA-2MB0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector 1/4" Male NPT (ASME B1.20.1)
End 2 Connector Male Quick-test

Adapter QTHA-2MB0

Length 1.29 in / 33 mm
Width 0.56 in / 15 mm
Burst Pressure 20000 PSI / 1380 bar / 140 MPa
Country of origin USA
Materials Brass
Max Operating Temperature 225 °F / 105 °C
Max Pressure 5000 PSI / 350 bar / 35 MPa
Max Vacuum 0 InHg / 0.0 kPa
Min Operating Temperature 0 °F / -18 °C
Seal Materials Buna-N
Wrench Size 9/16 In / 15 mm
Wrench Size 15 mm / 9/16 in
End 1 Connector 1/4" Male NPT (ASME B1.20.1)
End 2 Connector Male Quick-test

Bag SM-0084

Max Pressure 0 PSI / 0.00 mbar / 0.00 kPa
Max Vacuum 0 InHg / 0.0 kPa
Materials Zippered Nylon
Country of origin USA
