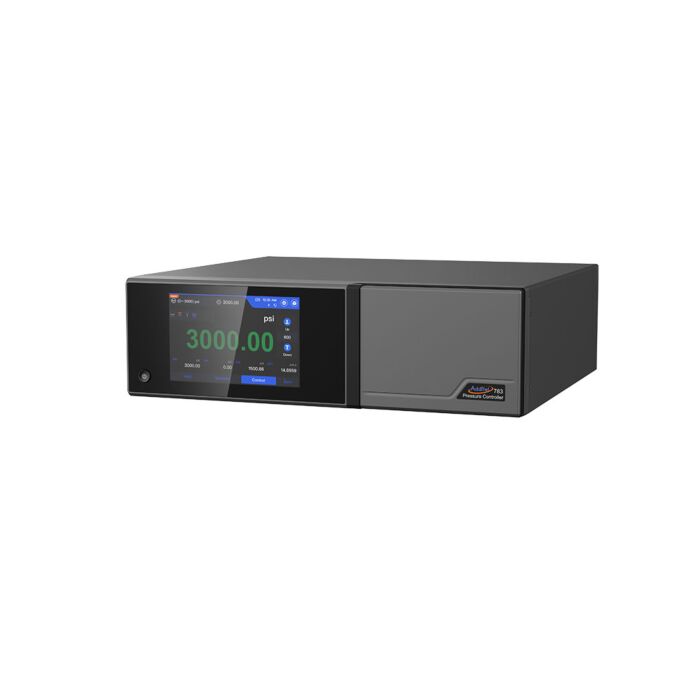

Additel ADT783-6K Pressure Controller, -14.5 to 6000psi, no module

Order # ADT783-6K | Mfg # ADT783-6K
Save 4%
$12,095.00
$11,611.20
  • Pressure range: -14.35 psi (--0.99 bar) to 6000 psi (420 bar)
  • Pressure modules sold separately
  • Accuracy: 0.02%FS or 0.01%FS or 0.01%RD
  • Control stability: 0.003%FS
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 783 controller series is optimized for high speed to pressure without compromising accuracy and stability. For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT783 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range.

  • Pressure range: -14.35 psi (--0.99 bar) to 6000 psi (420 bar)
  • Pressure modules sold separately
  • Accuracy: 0.02%FS or 0.01%FS or 0.01%RD
  • Control stability: 0.003%FS
  • Ultra-High speed pressure generation and control
  • Optional barometric pressure module
  • Built-in differential pressure pump
  • Large 7" color touch screen display
  • Multi-automatic test functions: pressure switch, test, leak test, PSV test, etc.
  • Modular design for easy maintenance, greatly reducing on-site downtime
  • Pressure modules are not included

Each Unit includes

  • (1) ADT 783 Pressure controller
  • (1) AC power cord (10A 250V)
  • (1) ISO17025 accredited calibration certificate
  • (2) Green terminal plug for switch detection
  • (10) O-ring 3.5*1.5 for ADT151
  • Standard vent assembly
  • 5 feet fexible hose, 4500 psi, 1/4BSP female to 1/4BSP femaleADT100-HTK-4.5K-BSPF4-BSPF4
  • 5 feet fexible hose, 15000 psi, 1/4BSP female to 1/4BSP femaleADT100-HTK-15K-BSPF4-BSPF4
