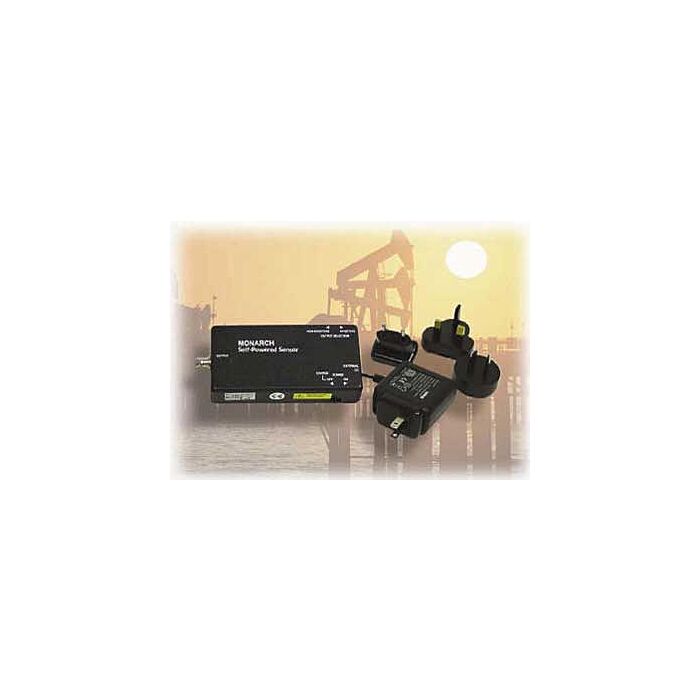

Monarch Instrument SPSR-115/230

Self-Powered Sensor Interface Module

Order #: 6150-020

Mfg #: 6150-020

Questions about availability or need help? Contact Us:

(800) 828-1470
$415.00

Monarch Instrument SPSR-115/230

Self-Powered Sensor Interface Module

Order #: 6150-020

Mfg #: 6150-020

$415.00
Availability: Item ships in about 1 - 2 Weeks

Ships FREE

Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • The TTL compatible output is switch selectable as either positive going 0-5V pulses or negative going 5-0V pulses provided on a BNC connector
  • Internal rechargeable batteries provide 40 hours of operation between charges
  • For continuous operation, the SPSRIM configurations can be powered by 115Vac, 230Vac or 9-15Vdc (with optional DC Cable Assembly)
  • Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers and magnetic tape recorders
  • Range (RPM)-Same as the sensor
  • Output signal TTL compatible pulse, 0-5V or 5-0V
  • Pulse Width Determined by size of target and rotational speed
  • Output connector BNC Connector
  • Power (4) "AA" Ni-MH batteries AC or 12 VDC

Each Unit Includes

  • SPSR-IM
  • PSC-1U
  • ROS-P
  • 12 inches of Reflective Tape
