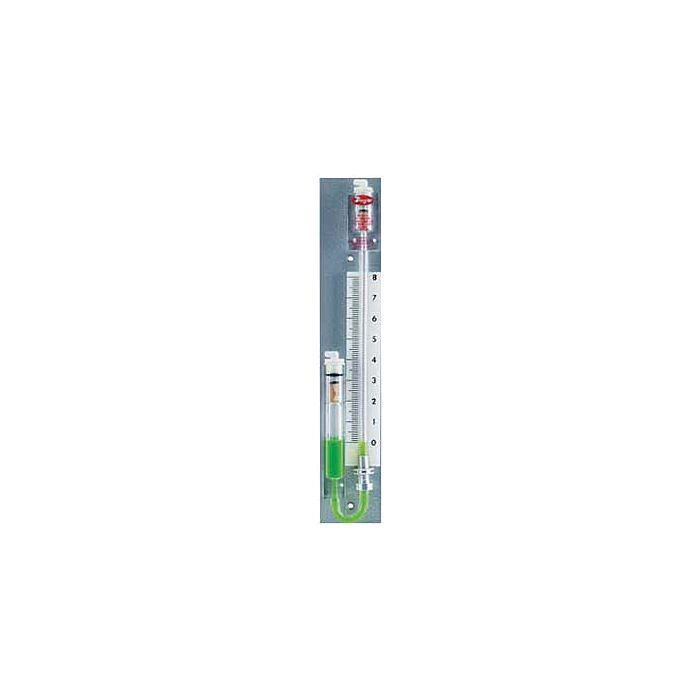

Dwyer Instruments 1230-20WM

Product Highlights

• Highly accurate pressure readings
• No hidden wells or packing glands
• Constructed of shatterproof clear plastic tubing permanently bonded to well assemblies with leakproof glued joints
• Well assemblies are precisely machined from solid acrylic plastic
• Overpressure safety traps assure protection against loss of fluid
• Heavy pure white acrylic plastic scales have sharp black silk screened figures and graduations sealed with clear mylar coating
• Scales are adjusted with quick-acting positive mechanism
• Heavy heat treated aluminum back plates have durable gray hammerloid finish
• Rated to 100 psig (6.89 bar)

Each Unit Includes

• One set of type “a” connections
• .826 sp. gr. red gage oil for “D” style or fluorescein green dye concentrate with wetting agent for “W/M” styles
• Two 3 ft. lengths of clear vinyl tubing
• Two 1/8? NPT tubing adapters
