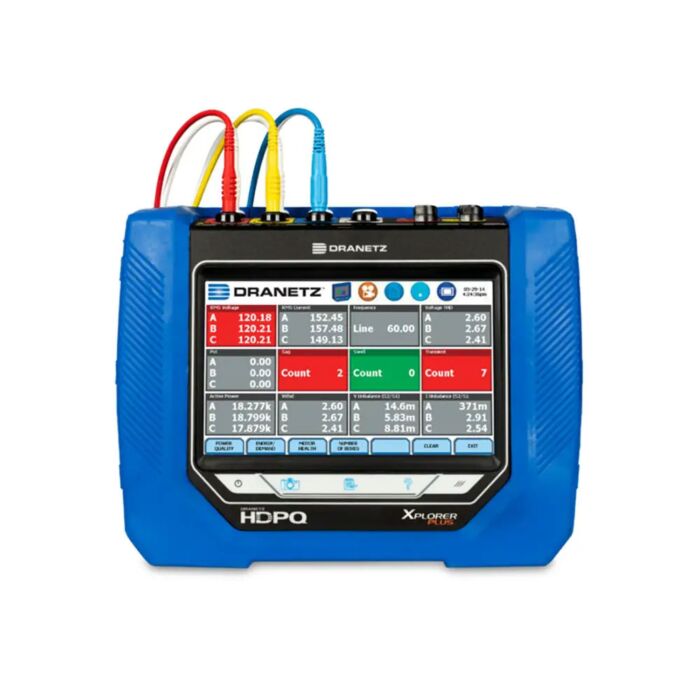

Dranetz HDPQ-P-VAFLEX6KPKG HDPQ Visa Plus Power Quality Analyzer, 6000A/24" FLEX Package

The Dranetz HDPQ Visa Plus (Portable) power quality analyzer offers the best value in power quality, demand, and energy monitoring from Dranetz, or any other Power Quality analyzer manufacturer! No other product at this price point comes close to matching the benefits and features provided by the Dranetz HDPQ Visa Plus!

The Dranetz HDPQ Visa Plus measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general-purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting, and more.

The Dranetz HDPQ Visa Plus enables users to review data and change settings remotely from virtually any smartphone, tablet, and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the 'safe' environment, and use either the VNC interface along with our Dran-View 7 software or our Dranetz HDPQ Apple or Android Apps via Ethernet for remote control from anywhere with connectivity to the instrument.

Precision

High Definition PQ & Energy Monitoring - 1000Vrms, AC/DC, 512 samples/cycle
Eight channels, 4 voltage & 4 current
Advanced PQ - IEC 61000-4-30 Class A Ed 3 & IEEE 1159 compliant
Harmonics - IEC 61000-4-7, IEEE 519:2014
Transient capabilities - V & I waveshape triggers. Well beyond PQ standards requirements
100 cycle pre/post trigger buffer
EN 50160 Ed 3
Motor AnswerModule

Communications

Ethernet, USB, Bluetooth - Optional
VNC for full remote control from Dran-View 7 or a 3rd party App
Apple & Android apps with real-time metering and alarm Dashboard

Safe & Rugged

Arc Flash Safety
UL/cUL listed and CE approved
Rugged enclosure with an easy-to-grip, shock-absorbing, non-conductive boot
Power supply cable retainer and wire management
Drop tested to 6'
Automatic circuit detection and feedback on the proper connection of the instrument

User Interface

7" WVGA color touch display
Automatic setups - PQ, Demand, and Energy
Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard

Productivity

Mini-Report - Screen snapshots, XML file. Easily uploaded and emailed!
PQ & Energy Dashboards for real-time alarming
Bigger display for more productive local analysis
Dran-View 7 power quality analysis software
Rescue kit - Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors, and more
Post-processing - Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
