Product Highlights
The Hioki PQ3198/600 KIT 3-Phase 4-Wire Power Quality Analyzer Kit with Class A Compliance is designed to measure single to three-phase lines with a high degree of precision and accuracy. The PQ3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. Features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.
The PQ3198 offers an extensive range of event parameters. This model is ideal for use in troubleshooting-related measurement since it can capture a variety of power supply anomalies. Additionally, it can measure power and efficiency across two circuits carrying different voltages (3-phase and DC, etc.).
The critical importance of electrical power in today's society necessitates daily maintenance and management to ensure that problems don't occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly. The PQ3198 provides robust support for field personnel who need to analyze power characteristics in the form of measurement capabilities that reliably captures the full range of power anomalies and exceptional ease of use throughout the entire user experience, from connecting the instrument to recording data.
Capture the full range of power supply anomalies, including momentary interruptions, voltage drops, and frequency fluctuations, while recording trends to help investigate the causes of unexpected equipment malfunctions and sudden stoppages.
Record fluctuations in voltage, current, power, harmonics, and flicker when connecting a highly variable system such as a renewable energy source or EV charging station to the grid. Easily analyze the data with the included PQ ONE software.
Use AC/DC auto-zero current sensors (600A AC sensors included) to measure DC current accurately over extended periods of time. Since the sensors are powered by the instrument, there's no need to set up a separate power supply.
The PQ3198 can measure all parameters at once, including power, harmonics, and anomaly waveforms. The instrument also provides simple setup functionality for automatically configuring recording parameters for popular applications.
The PQ3198 can measure transient voltages of up to 6000V (requires optional sensors) lasting as little as 0.5 µs (2 MS/s). It can also measure high-order harmonic components from 2 kHz to 80 kHz. As inverters enter into widespread use, malfunctions and failures in that frequency band are becoming more common.
Since the PQ3198's fourth voltage channel is isolated from its first three voltage channels, the instrument can measure power and efficiency across two separate circuits. For example, users can verify the quality of the input (AC) and output (DC) of an EV rapid charger while simultaneously measuring power and efficiency between input and output.
The free PQ ONE application software for the PQ3138 Power Quality Analyzer lets users analyze captured data in fine detail and create regular power quality management reports with ease and flexibility. Investigate the cause of power anomalies in the comfort of your office using a PC.
Features

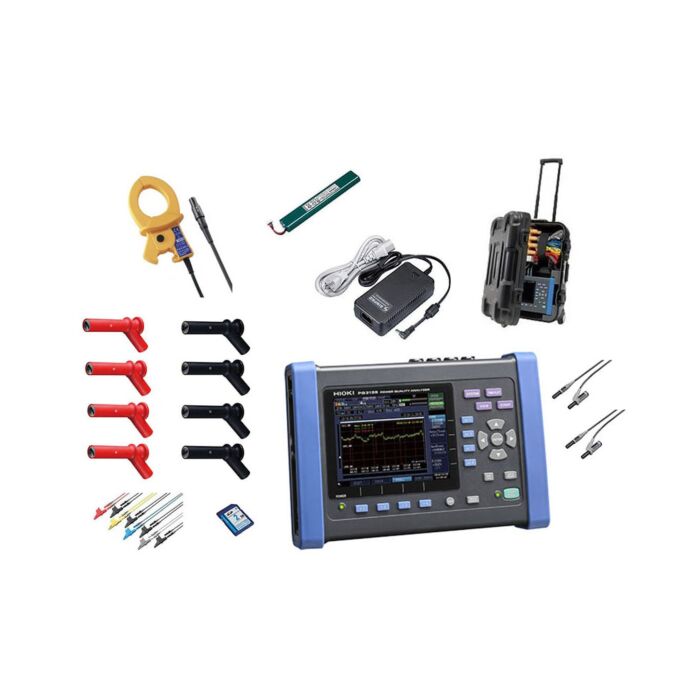

- Kit includes 4 x 600A AC current sensors, patch cords, magnetic tip adapters, memory card and hard carrying case
- Verifies power problems in accordance with IEC61000-4-30 Class A standard
- Offers high accuracy and continuous gapless recording
- Broadband voltage range allows measurements of high-order harmonic components up to 80 kHz
- Maximum 6000V peak transient voltage up to 700 kHz
- Measures up to 6000A AC with flexible sensor (sold separately)
- Measures power and efficiency across two circuits carrying different voltages
- Performs simple invert measurement with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
- Offers 400 Hz line measurement in addition to 50/60 Hz
- Captures all parameters at once, including power, harmonics, and anomaly waveforms
- Simultaneously records event waveforms and trend graphs
- Simple setup functionality for streamlined configuration of recording parameters
- Automatic sensor detection to avoid erroneous measurement
- Included PQ ONE application software allows users to easily create reports
