Overview

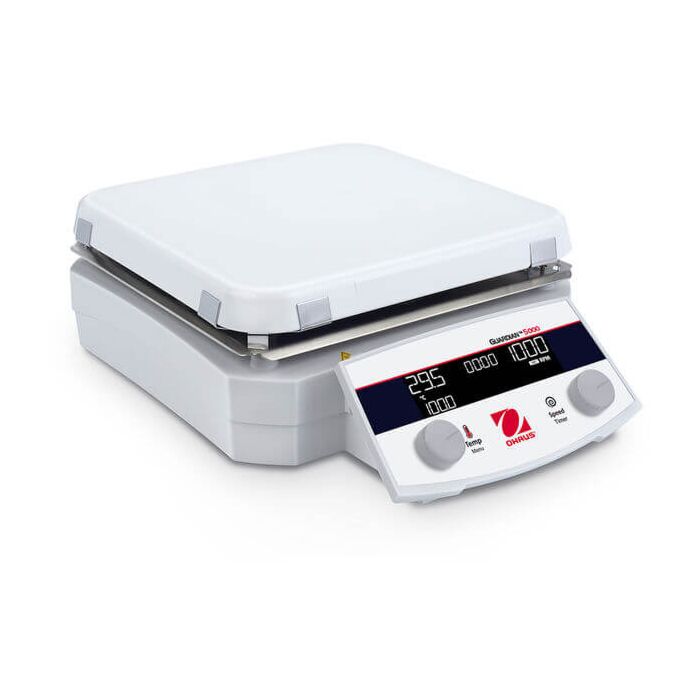

The Next Generation Guardian 5000 Hotplate Stirrers are engineered for safety and versatility across research, academic and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably. Heating models reach up to 550C and feature 3 temperature control modes for quick heating or precise heating without overshoot. Select from 5 models with 3 plate sizes.
Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
Operation: S100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
Communication: RS232 for data logging and remote control
Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
Function: Heating and Stirring
Capacity: 22 L
Plate Construction: Ceramic
Plate Size: 10 in x 10 in (26 cm x 26 cm)
Temp. Range: Ambient +5C to 500C
Speed Range: 50 rpm - 1,800 rpm
Calibration: Temperature Calibration 3 Plate/3 Probe
Communication: thernet (Available as an Accessory); USB (Available as an Accessory); RS232
Control: Digital
Dimensions: 15.84 in x 4.65 in x 11.28 in (402 mm x 118 mm x 287 mm) (LxHxW)
Display: High contrast brilliant LCD display
Net Weight: 5.5 lb (2.5 kg)
Power: 100V-120V, 15A 50/60Hz
Safety Certification: CE; TUV
Speed Stability: +/-2%
Temperature Probe: Pt100; Pt1000; Available as an Accessory
Temperature Stability: +/-1% Plate, below 100C +/-1C and +/-0.5% Probe, below 100C +/-0.5C
Working Environment: 5C to 40C, 80% RH, Non-condensing (41F to 104F, 80% RH, Non-condensing)
