Product Highlights

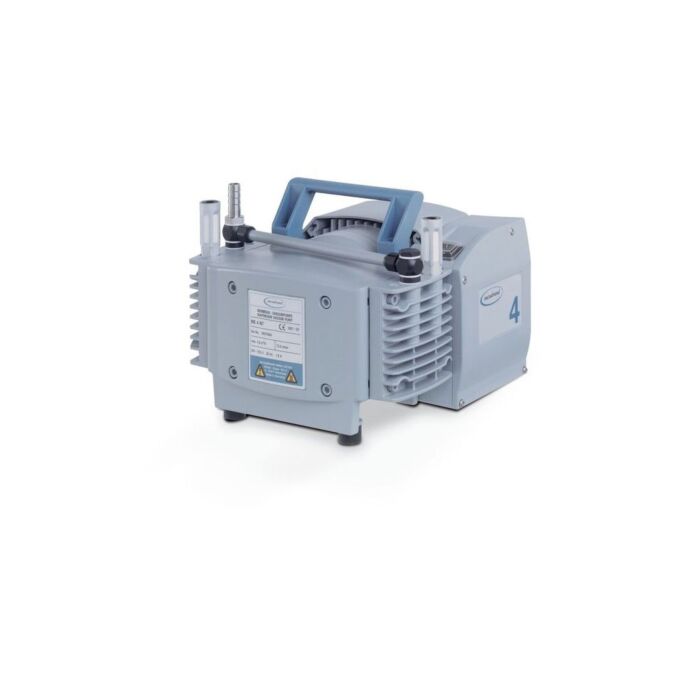

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data. One-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at modest vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens, aqueous filtrations and pumping and evacuation of non-aggressive gases in general. The ME 4 NT offers shorter evacuation times and higher gas throughput.
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Whisper quiet operation
- ME 4 NT with low vibration and higher pumping speed
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data and graphs
| Max. pumping speed 50 Hz |
4 m³/h |
| Max. pumping speed 60 Hz |
2.6 cfm |
| Ultimate vacuum |
70 mbar / 52 torr |
| Number of heads |
2 |
| Number of stages |
1 |
| Lower ambient temperature (operation) |
10 °C |
| Upper ambient temperature (operation) |
40 °C |
| Lower ambient temperature (storage) |
-10 °C |
| Upper ambient temperature (storage) |
60 °C |
| Max. back pressure (abs.) |
2 bar |
| Inlet connection |
Hose nozzle DN 8-10 mm |
| Outlet connection |
2 x G1/4" |
| Rated motor power |
0.18 kW |
| Rated motor speed at 50/60 Hz |
1500/1800 min-1 |
| Protection class IEC 60529 |
IP 40 |
| Dimension L in mm |
245 mm |
| Dimension B in mm |
239 mm |
| Dimension H in mm |
198 mm |
| Weight |
11.0 kg |
| Noise (sound pressure level) |
45 dBA |
| NRTL certification |
Yes |
| Items supplied |
Pump completely mounted, ready for use, silencer, hose nozzle, with manual. |
| Rated mains voltage range 1 |
100-115 V |
| Rated mains voltage range 2 |
120 V |
| Mains frequency 1 |
50-60 Hz |
| Mains frequency 2 |
60 Hz |
