Product Highlights

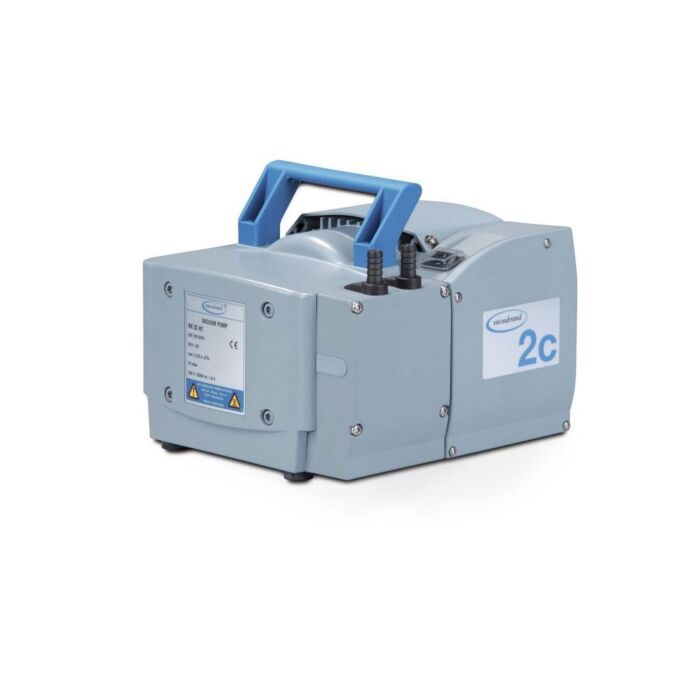

One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors at low vacuum requirement. In contrast to waterjet pumps they do not consume water and therefore do not produce any contaminated waste water in daily use. Typical applications are vacuum ovens, filtrations and multi-port manifolds for medium throughput, as well as pumping of gases and oil-free evacuation in general. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. One-stage chemistry diaphragm vacuum pumps are an excellent choice for applications with corrosive gases and vapors which do not require very deep vacuum levels. Typical applications are vacuum ovens, filtrations as well as concentration of solvents with low boiling points. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. The well proven robust PTFE sandwich diaphragm provides outstanding reliability and operating life.
- Whisper quiet and very low vibration
- Powerful, even for parallel operation of several applications
- High performance even at low vacuum levels
- Outstanding chemical resistance
- Long diaphragm life, maintenance-free drive system
Technical data and graphs
| Max. Pumping Speed 50 Hz |
2.1 m³/h |
| Max. Pumping Speed 60 Hz |
1.4 cfm |
| Ultimate Vacuum |
70 mbar / 52 torr |
| Number of Heads |
1 |
| Number of Stages |
1 |
| Lower Ambient Temperature (Operation) |
10 °C |
| Upper Ambient Temperature (Operation) |
40 °C |
| Lower Ambient Temperature (Storage) |
-10 °C |
| Upper Ambient Temperature (Storage) |
60 °C |
| Max. Back Pressure (abs.) |
1.1 bar |
| Inlet Connection |
Hose Nozzle DN 8-10 mm |
| Outlet Connection |
Hose Nozzle DN 8-10 mm |
| Rated Motor Power |
0.18 kW |
| Rated Motor Speed at 50/60 Hz |
1500/1800 min-1 |
| Protection Class IEC 60529 |
IP 40 |
| Dimension L (mm) |
243 mm |
| Dimension B (mm) |
211 mm |
| Dimension H (mm) |
198 mm |
| Weight |
10.2 kg |
| Noise (dBA) |
45 dBA (at 50 Hz or 1500 rpm) |
| NRTL Certification |
Yes |
| Items Supplied |
Pump completely mounted, ready for use, with manual. |
| Rated Mains Voltage Range 1 |
100-115 V |
| Rated Mains Voltage Range 2 |
120 V |
| Mains Frequency 1 |
50-60 Hz |
| Mains Frequency 2 |
60 Hz |
