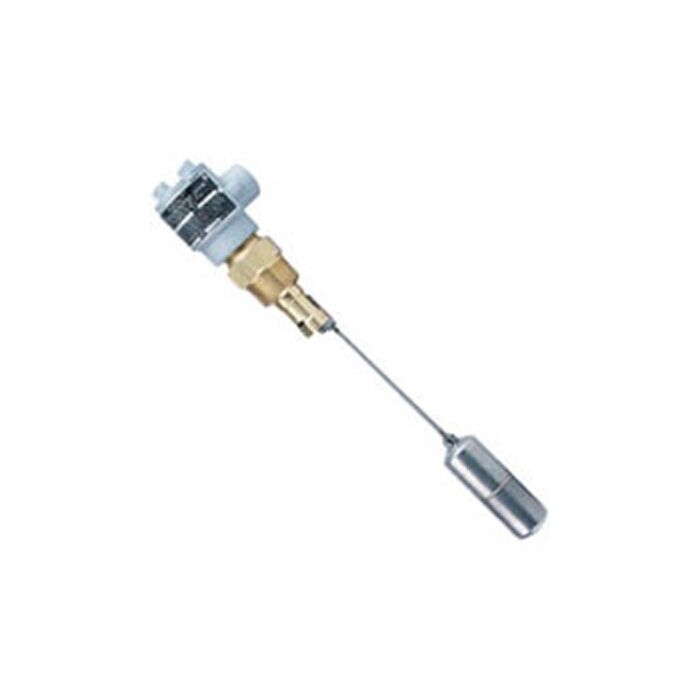

Dwyer Instruments L4-AT

Order # L4-AT | Mfg # L4-AT
$1,023.60
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • Leak proof body machined from bar stock
  • Choice of floats dependant on maximum pressure and specific gravity
  • Weatherproof, designed to meet NEMA 4
  • Explosion-proof
  • Installs directly and easily into tank with a threaded branch connection or flange
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • Horizontal installation or optional top mount vertical installation
  • Unique magnetically actuated switching design gives superior performance
  • No bellows, springs, or seals to fail
  • Free-swinging float attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm
  • Float arm hinge design limits the arm angle to prevent vertical hang up
