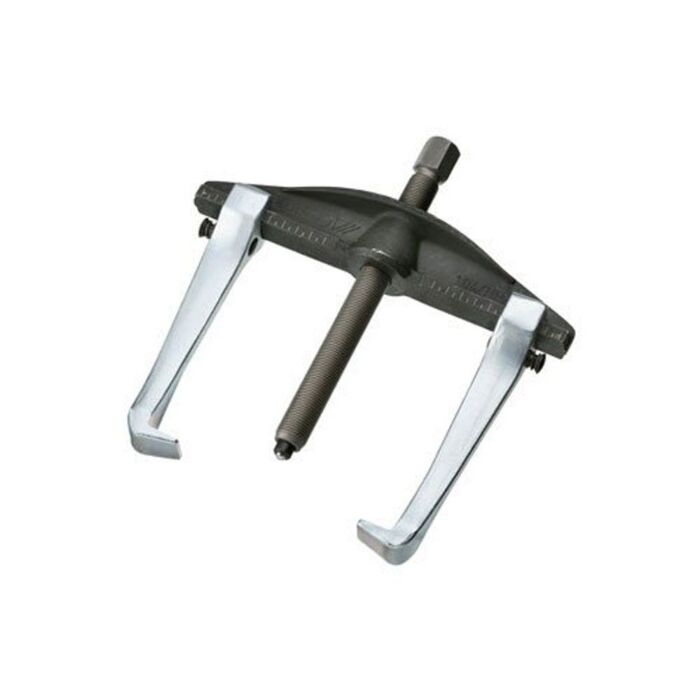

Gedore Tools 1.04/HP3A-B Univ. Puller High Power 2-Arm,Rigid Legs w/ Leg Break 350x200mm

Clamping spread -max- external pulling (a, a1): 350 mm
Clamping spread -min- internal pulling (a2): 150 mm
Clamping spread -max- internal pulling (a2): 420 mm
Clamping reach: 200 mm
Spindle size (Thread x Length): G 3/4 x 280
Hydraulic spindle: 1.06/HSP2
Width Across Flat / Actuating Hexagon: 27 mm
Width of hooked foot (c): 36 mm
Depth of hooked foot (d): 32 mm
Thickness of hooked foot at tip (e): 5 mm
Loading max. t: 15 t
Loading max. N.m: 14N
Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
Rigid legs forged from one piece
Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
Two versions: with mechanical or hydraulic spindle
