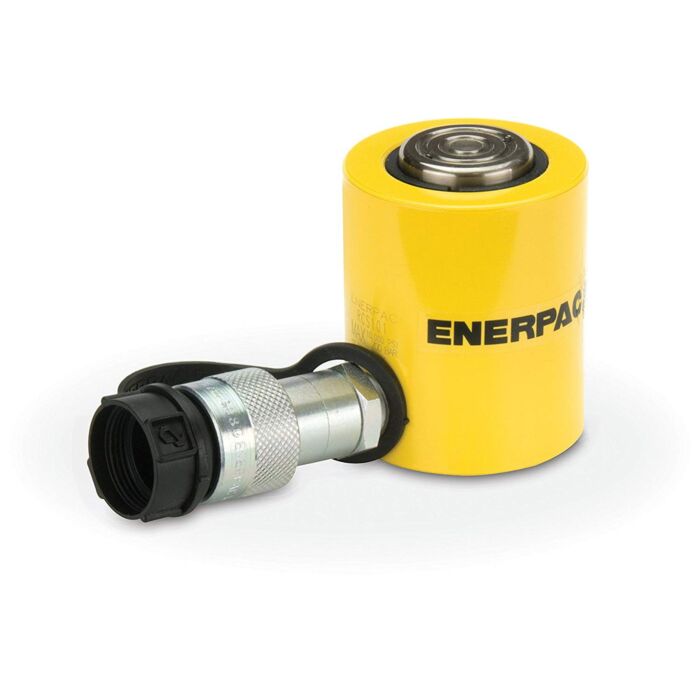

Enerpac RCS-101 Low Height Cylinder,10-ton 1.5" Stroke

Enerpac RCS101 Low Height Cylinder, 10-ton, 1.5" Stroke

Order # RCS-101

Mfg # RCS101

call-regular 800-828-1470
$764.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Enerpac RCS101 Low Height Cylinder, 10-ton, 1.5" Stroke

Order # RCS-101 | Mfg # RCS101
$764.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • CR-400 coupler and dust cap included on all models
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Single-acting spring return

Technical Resources

Enerpac RSM and RCS Series Datasheet

Specifications

Enerpac Model No. RCS-101 RCS-201 RCS-302 RCS-502 RCS-1002
Cylinder Capacity (Tons) 10 tons 20 tons 30 tons 50 tons 100 tons
Stroke (in) 1.5" 1.75" 2.44" 2.38" 2.25"
Cylinder Effective Area (in squared) 2.24 4.43 6.49 9.62 19.63
Collapsed Height (in) 3.47" 3.88" 4.63" 4.81" 5.56"
Weight (lbs) 9 lbs 11 lbs 15 lbs 24 lbs 50 lbs
