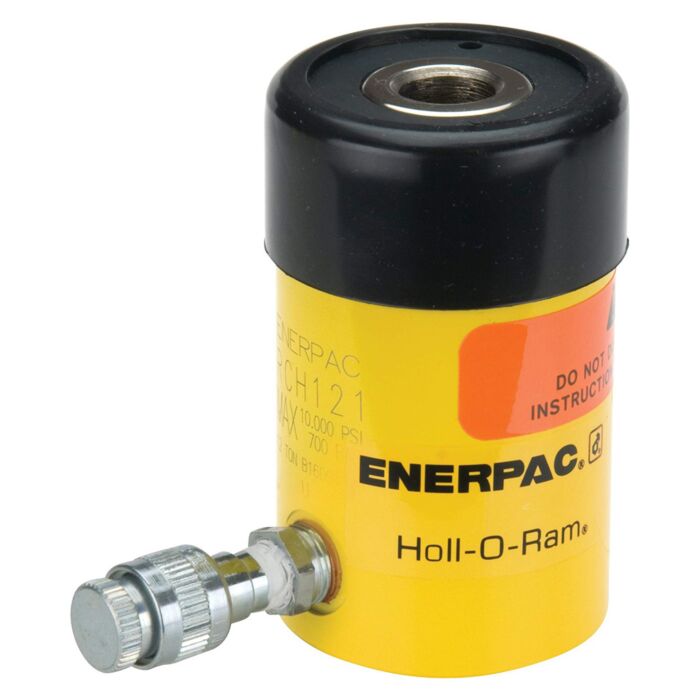

Enerpac RCH-120 12-Ton Holl-O-Cylinder,S/A

Enerpac RCH120 12-Ton Holl-O-Cylinder, S/A

Order # RCH-120

Mfg # RCH120

call-regular 800-828-1470
$912.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Enerpac RCH120 12-Ton Holl-O-Cylinder, S/A

Order # RCH-120 | Mfg # RCH120
$912.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Hollow plunger design allows for both pull and push forces
  • Single-acting spring return
  • Nickel-plated, floating center tube on models over 20 tons increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Includes AR630 coupler and has 1/4 NPTF port

Technical Resources

Specifications

Cylinder capacity 12 tons (13.8 maximum)
Stroke length 0.31 inches
Effective area 2.76 square inches
Oil capacity 0.86 cubic inches
Cylinder bore diameter 2.13 inches
Collapsed height 2.19 inches
Extended height 2.5 inches
Outside diameter 2.75 inches
Center hole diameter 0.77 inches
Port size 1/4" NPTF
Weight 3.2 lb.
