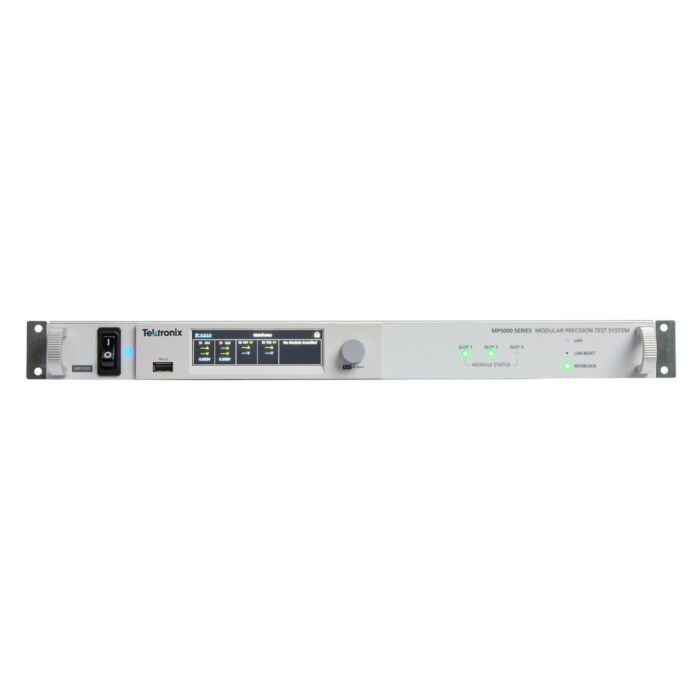

The Tektronix MP5000 Modular Precision Test System accommodates all your sourcing needs within a 1U rack space. This top-tier automated test equipment (ATE) optimizes rack space by incorporating multiple source measure units (SMUs) and power supplies with adaptable module options. Featuring three slots and dual-channel modules, it offers up to six parallel channels. For higher channel count applications, TSP-Link™ provides a solution to connect mainframes in a master-subordinate configuration, effectively allowing them to function as one unit. This facilitates the creation of an optimized source and measurement system suitable for a wide range of applications, from validating design and debugging to complex parallel test systems used in ATE.
Customers can mix and match module configurations to optimize cost, throughput, and accuracy. For applications where low current measurements and sinking capabilities aren't required, power supplies can be a cost-effective solution. For applications in which true current sourcing and high-speed measurements are required, consider an SMU module. The system supports a wide array of applications, and its high-density design conserves valuable rack space and reduces cost per channel. It's engineered to deliver fast throughput for high-channel parallel testing, saving both cost and time for production and validation test users.
- Compact 1U mainframe offering significant space and cost efficiency over conventional rack-and-stack systems
- 3 configurable slots offer flexibility to mix & match PSU and SMU modules to optimize the cost-performance tradeoff
- Add or remove modules effortlessly without powering off the mainframe, thus reducing downtime
- Additional digital I/O pins (18) support efficient handshaking with other test rack equipment
- TSP-Link facilitates precise synchronization within 500 ns across multiple mainframes, ideal for high channel count parallel testing
- Employs 1 Gbps Ethernet and USB 3.0 for fast data streaming
- Features a modern touch display for simplified setup and troubleshooting
Applications
- Educational Labs
- General Electronics Testing
- Research & Development
Each Unit Includes
- Mainframe MP5103 (MP5103)
