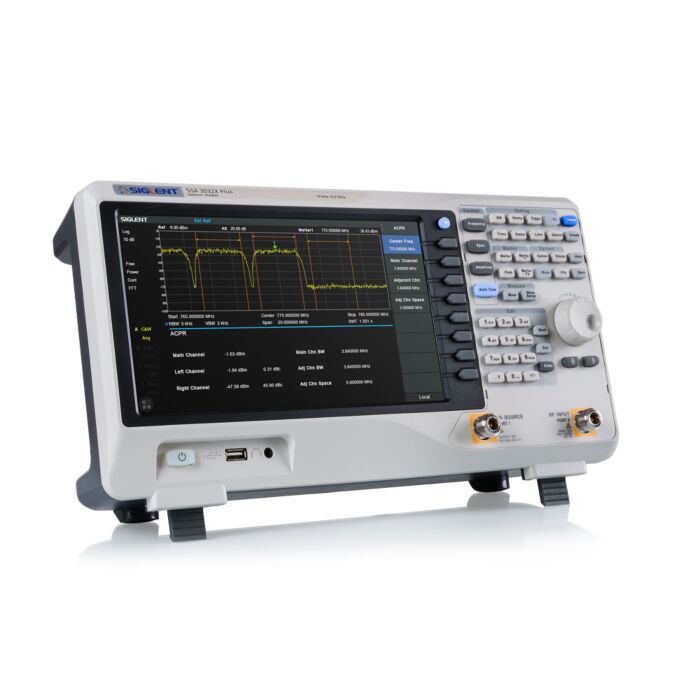

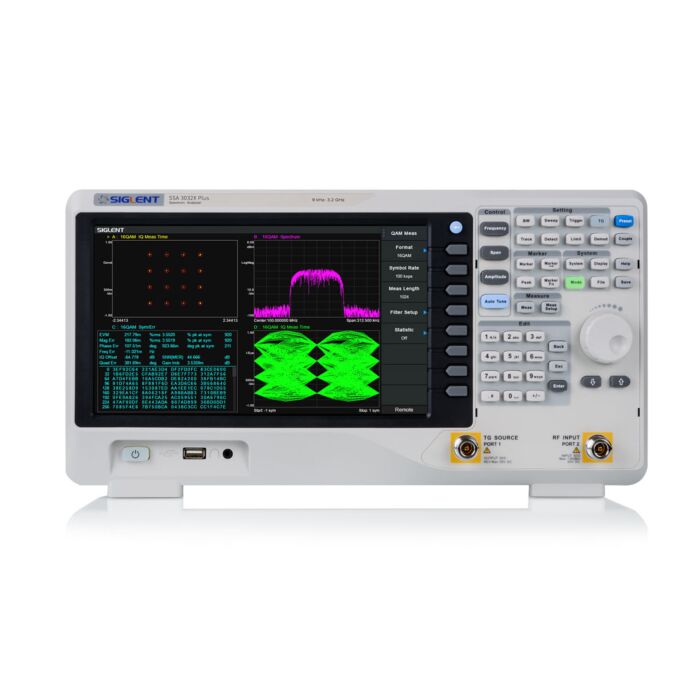

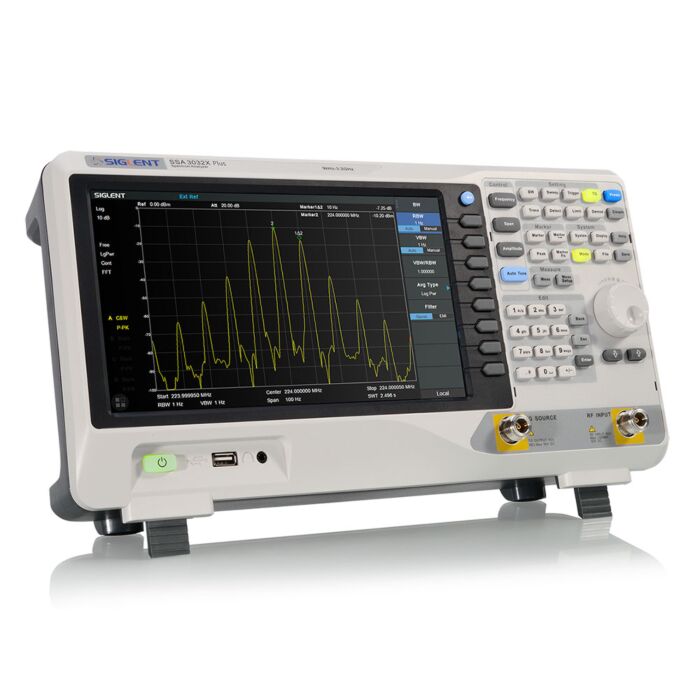

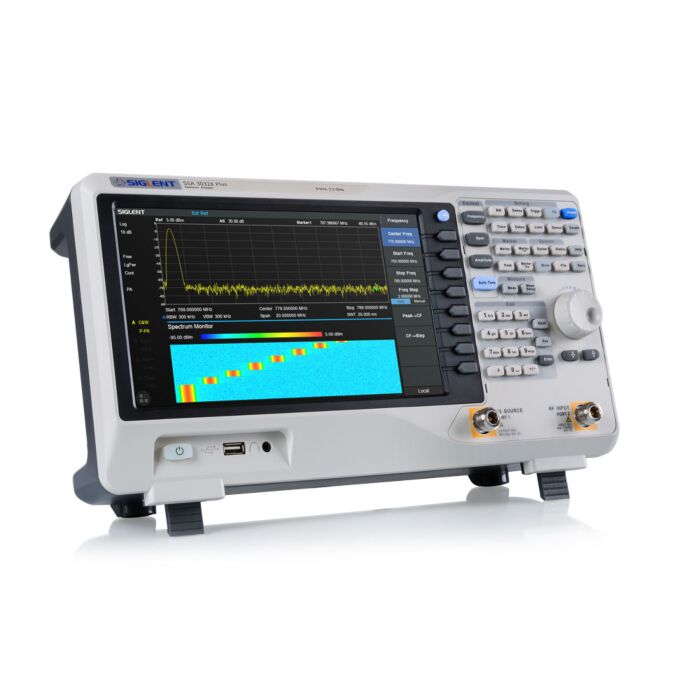

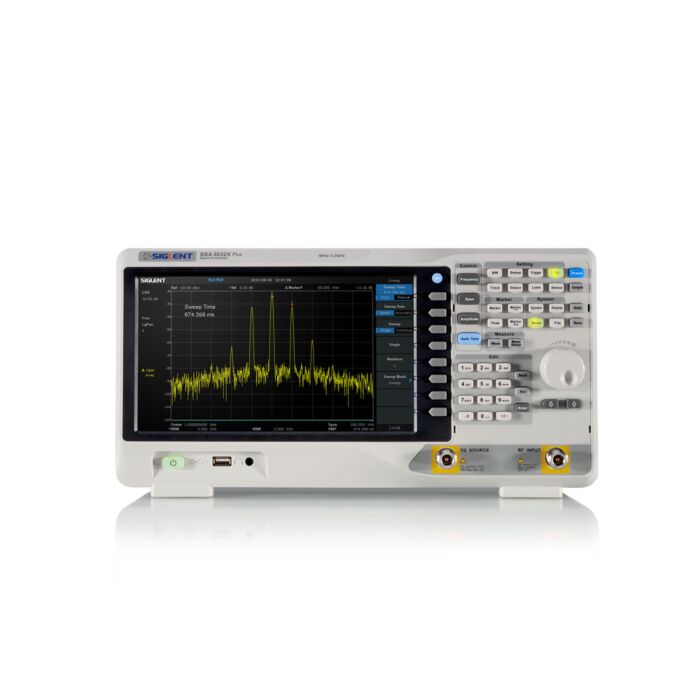

Siglent SSA3032X PLUS
Spectrum Analyzer, 9KHz-3.2GHz

Order #: SSA3032X-PLUS

Mfg #: SSA3032X PLUS

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,890.00

Siglent SSA3032X PLUS

Spectrum Analyzer, 9KHz-3.2GHz

Order #: SSA3032X-PLUS

Mfg #: SSA3032X PLUS

$2,890.00
Availability: Ships in 3-4 weeks

Product Highlights

The SIGLENT SSA3032X Plus spectrum analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation

The basic function of the Siglent SSA3032X PLUS Spectrum analyzer and options include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI testing. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

  • Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz / 3.2 GHz
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator (included at no charge)
  • Vector Signal Modulation Analysis Mode (Opt.)
  • Reflection Measurement Kit (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

*New SSA3000X Plus instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
ModelSSA3021X PLUSSSA3032X PLUSSSA3075X PLUS
Spectrum Analyzer Frequency Range 9 kHz~1.5 GHz 9 kHz~3.2 GHz 9 kHz~7.5 GHz
Resolution Bandwidth 1 Hz~1 MHz 1 Hz~1 MHz 1 Hz~3 MHz
Displayed Average Noise Level -161 dBm/Hz -161 dBm/Hz -165 dBm/Hz
SSB Phase Noise <-98 dBc/Hz <-98 dBc/Hz <-98 dBc/Hz
Total Amplitude Accuracy < 0.7 dB < 0.7 dB < 0.7 dB
Tracking Generator 100 kHz ~ 2.1 GHz 100 kHz~3.2 GHz 100 kHz~7.5 GHz
Touch Screen Multi Touch, Mouse and Keyboard supported Multi Touch, Mouse and Keyboard supported Multi Touch, Mouse and Keyboard supported
Advanced Measurement CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Reflection Measurement VSWR measurement using Reflection Bridge VSWR measurement using Reflection Bridge VSWR measurement using Reflection Bridge
EMI Test EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line
Modulation Analysis AM, FM; ASK, FSK, MSK, PSK, QAM AM, FM; ASK, FSK, MSK, PSK, QAM AM, FM; ASK, FSK, MSK, PSK, QAM
Communication Interface LAN, USB Device, USB Host (USB-GPIB) LAN, USB Device, USB Host (USB-GPIB) LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explorer NI-MAX, Web Browser, Easy Spectrum software, File Explorer NI-MAX, Web Browser, Easy Spectrum software, File Explorer
