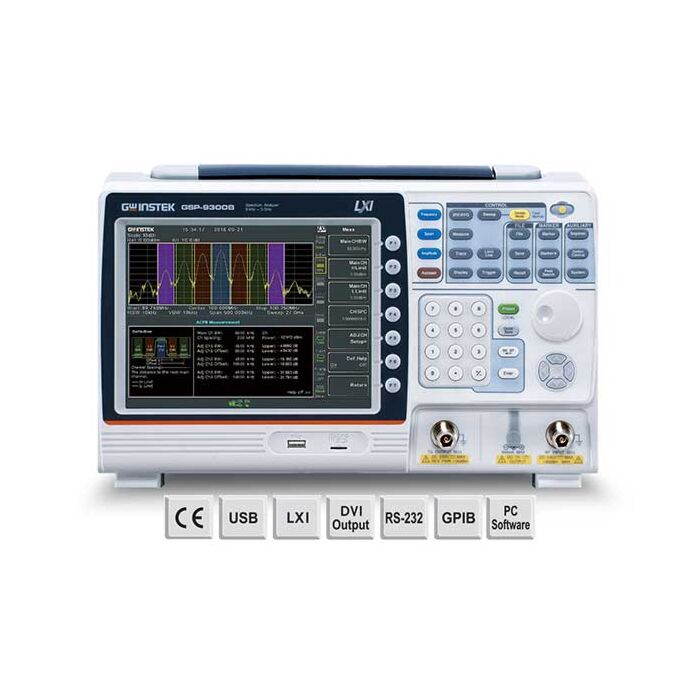

GW Instek GSP-9300BTG 9KHz-3GHz Spectrum Analyzer with Tracking Generator

The Instek GSP-9300BTG Spectrum Analyzer meets RF measurement requirements via the frequency stability of 0.025ppm, aging rate of 1ppm/year, built-in preamplifier and base noise of -149dBm/Hz. More than 20 measurement applications are included such as AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test.

• Tracking Generator Installed
• Frequency Range: 9kHz - 3 GHz
• 0.025ppm Frequency Stability and 1ppm aging Rate
• Built-in Preamplifier, 50dB Attenuator, and Sequence Function
• RBW: 1Hz - 1MHz
• Sensitivity: -149dBm/Hz (@PreAmp on)
• Built-in AM/FM Demodulation & Analysis
• Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
• Built-in Spectrogram, Topographic and Dual-View Display Modes
• Remote Control Interface: LAN, USB, RS-232

Each Unit Includes

• 1 - Spectrum Analyzer with Built-in Preamp and Tracking Generator (GSP-9300BTG)
• 1 - Power Cord
• 1 - Certificate of Calibration
• 1 - CD with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver
