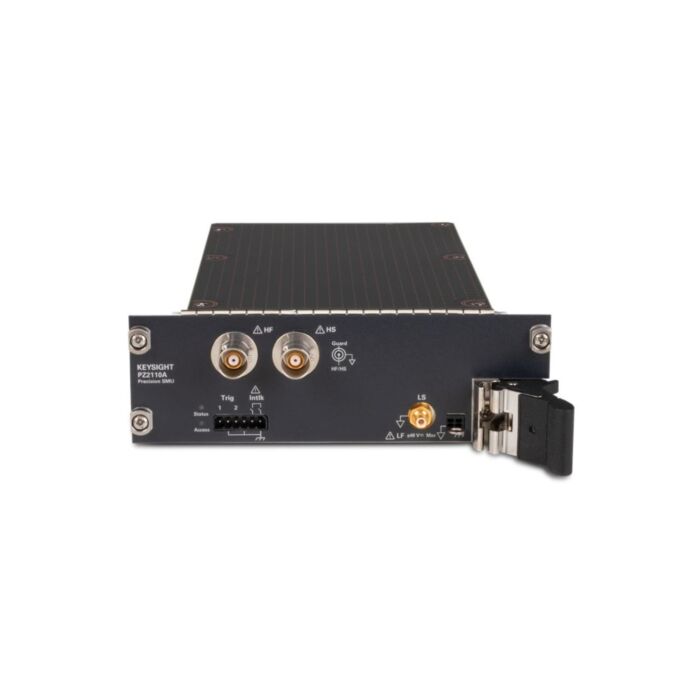

Keysight PZ2110A
Precision Source/Measure Unit, 1.25 MSa/s, 10 fA, 210 V

Order #: PZ2110A

Mfg #: PZ2110A

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,502.00

Keysight PZ2110A

Precision Source/Measure Unit, 1.25 MSa/s, 10 fA, 210 V

Order #: PZ2110A

Mfg #: PZ2110A

New
Loading...
Print Save Item Compare
$9,502.00
Register to view exclusive member pricing
Availability: Call for Availability

 Ships Free Over $100

This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.

Product Highlights

The Keysight PZ2110A is a precision source / measure unit (SMU) that expands precise measurements from conventional static measurements and pulsed measurements, to fast dynamic measurements. It is ideal for a wide variety of current versus voltage (IV) measurement tasks that require both high resolution and accuracy. The PZ2110A can accurately perform characterization, parametric tests, and reliability tests of semiconductors, active / passive components, and general electronic devices.

  • Maximum output at 210 V, 315 mA DC / pulse
  • Minimum resolution at 500 nV / 10 fA
  • Low current measurement noise at 30 fArms with 1 power line cycle (PLC)
  • Minimum pulse width at 20 μs
  • Fast Digitizer Mode with maximum sampling rate at 1.25 MSa/s
  • Fast transient with 1.5 V/µs maximum slew rate
