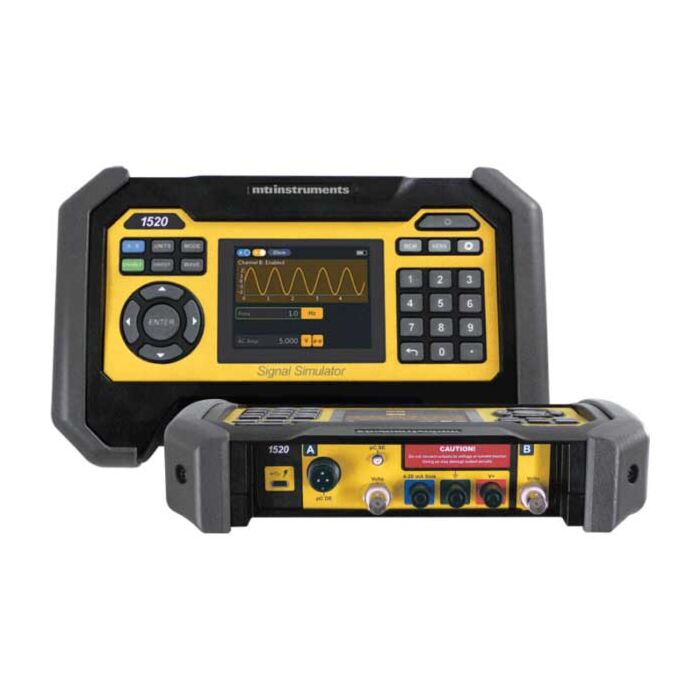

The 1520 Precision Signal Simulator is a NIST-traceable signal source for testing and calibrating sensor-driven systems. This portable and easy-to-use system lets technicians bring laboratory-grade precision into the field or onto the factory floor or flightline. Applications include accelerometers, flow meters, pressure transducers, tachometer generators, and microphones. An intelligent sensor database lets operators simulate a wide variety of sensor types and build custom simulations using SQL queries.
MTI's 1520 Precision Signal Simulator is Made in the USA and combines a rugged and ergonomic design with a battery that supports all-day use. This field-upgradable unit supports software updates along with additional sensors and features. Importantly, this WiFi-enabled device can be remotely controlled via a smartphone so that a single technician can perform troubleshooting and diagnostics. Technicians like its intuitive user interface and appreciate that its touchscreen is easy-to-use with a
- Portable and Rugged - The 1520 features a rugged, but ergonomic, design that lets you bring laboratory-grade precision into the field.
- Signals - Dual Voltage, Single Current Loop, and Single Charge Mode in both Single Ended and Differential Forms.
- Waveforms - Custom, Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1Hz to 100kHz in 0.1 Hz increments.
- Jog Function - Vary the signal amplitude in increments to determine system gain, or vary the signal frequency to determine filter response.
- Sweep Function - Customizable time, voltage or charge.
- Bridge Circuit Simulation - Easily command microvolts to simulate strain gauges.
- High Accuracy - Voltage and charge signals with accuracies to 0.05%.
- Versatility - Build your own applications using common SQL queries.
- Light and dark modes to accommodate user preference and lighting conditions.
- Languages supported: English; additional languages coming soon.
- UI designed with color vision deficiency users in mind.
- A/B channels are color mapped for ease-of-use.
- Annual calibration plans available to help meet NIST regulatory requirements.
Applications
- Cabling and wiring troubleshooting
- Audio signal simulation
- Vibration signal simulation - accelerometers and velocity probes
- Machinery speed signal simulation
- Low-voltage bridge sensor signal simulation
- Calibration of:
- Monitoring systems
- Charge amplifiers
- Avionics equipment
Each Unit Includes
- 1520
- USB-C Connector/Charger
- Carrying case
- User manual
