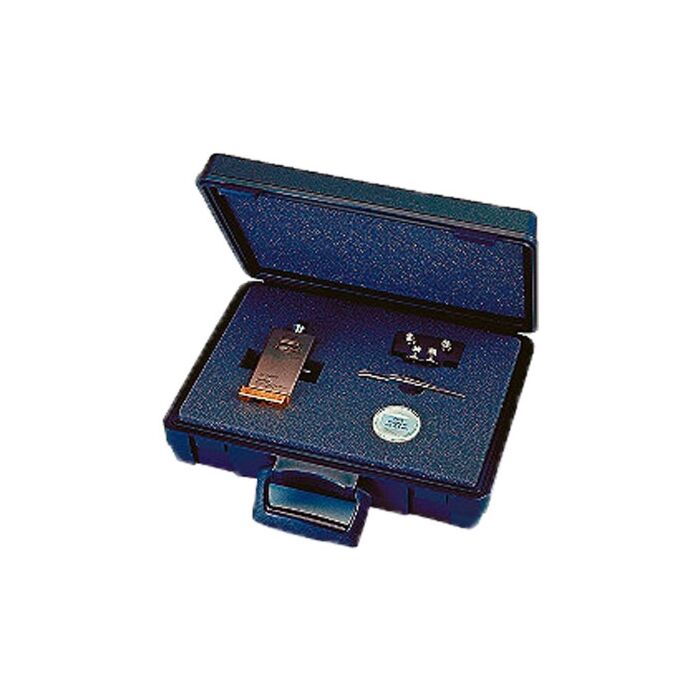

Keysight 16453A
Dielectric Material Test Fixture

Order #: 16453A

Mfg #: 16453A

Questions about availability or need help? Contact Us:

(800) 633-0561
$13,983.00

Keysight 16453A

Dielectric Material Test Fixture

Order #: 16453A

Mfg #: 16453A

$13,983.00
Availability: Ships in 4-6 weeks

Product Highlights

The 16453A is designed for accurate dielectric constant and loss tangent measurements on the E4991A/4291A/B. It employs the parallel plate method, which sandwiches the material between two electrodes to form a capacitor. The E4991A/4291A/B measures the capacitance created from the fixture, and option 002 firmware calculates the relative complex permittivity as described in the 16451B. Adjustment to insure parallel electrodes is required when using the 16451B. This adjustment is not required with the 16453A because the fixture has a flexible electrode that adjusts automatically to the material surface.
  • Frequency: 1 MHz to 1 GHz
  • Sample size (smooth sheets only): thickness: 0.3 mm to 3 mm diameter: ≥ 15 mm
