Overview

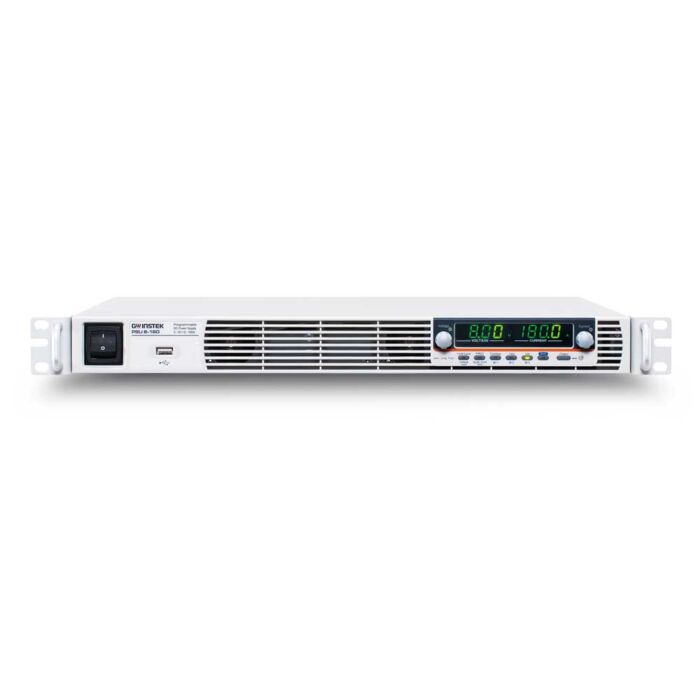

The Instek PSU 8-180 Programmable Switching DC Power Supply is suitable for test system installation or system integration by flexibly selecting models for the integration into the existing test system. The PSU8180 is recommended for electronic components testing, micro resistors, relays, shunt resistors, 12V/24V/48V battery simulation, and automotive electronic device testing.
Voltage Output: 8V
Current Output: 180A
Power Output: 1440W
Output Power Rating: 1440W
C.V/C.C Priority
Adjustable voltage/current rise and fall time
Series/Parallel Connection: Max. 2 Units(Models Under 300V)/4 Units of The Same Model
High Efficiency and High Power Density
1U Height and 19" Rack Mount Size
Bleeder Control Function
Internal Resistance Function
Panel Lock Function
Protection: OVP, OCP, OHP, UVL< AC Fail, FAN Fail
Standard Interface: USB, LAN, RS-232, RS-485, Analog Control
Optional Interface: PSU-GPIB - Isolated Analog Interface (Voltage/Current Control)
Each Unit Includes
1 - Programmable Switching DC Power Supply (PSU 8-180)
1 - User Manual
1 - Output Terminal Cover
1 - Analog Connector Plug Kit
1 - Input Terminal Cover
1 - 1U Handle (RoHS)
1 - 1U Bracket (LEFT, RoHS)
1 - 1U Bracket (RIGHT, RoHS)
1 - Power Cord (10A) Provided For Certain Regions Only
