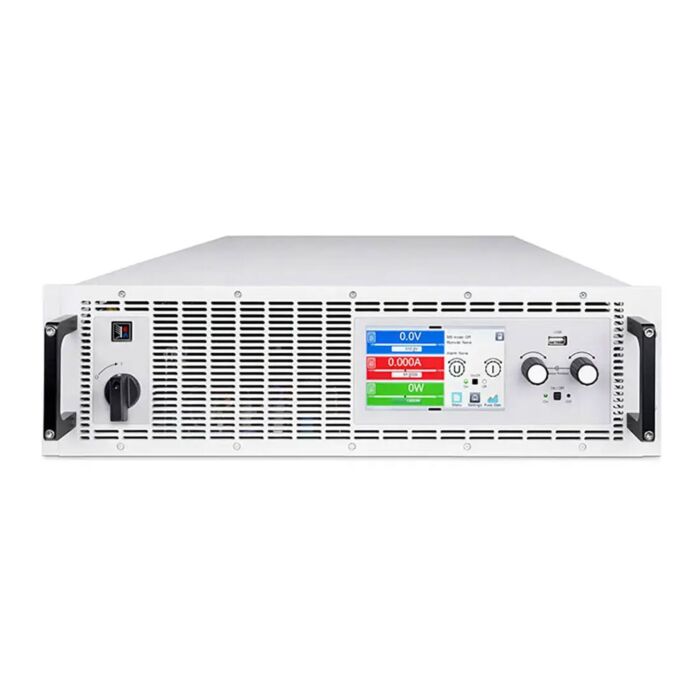

Elektro-Automatik PSI 12000-20 USV Laboratory power supply; PSI 12000-20 3U US208V 15000W; 2000 V/ 20 A; US208V

The Elektro-Automatik EA-PSI 12000-20 3U is a high-performance, intelligent programmable DC laboratory power supply delivering up to 15,000W of power, 2000V, and 20A.

The EA PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series.

• Voltage Range: 0 V to 2000 V
• Current Range: 0 A to 20 A
• Power Output/Input: 15,000 W
• Up to 96% efficiency in discharge mode, feeding energy back to the grid to reduce costs and heat

Applications

• Component Testing
• Emulating DC Sources
• Smart Grid Integration

Each Unit Includes

• Laboratory Power Supply (EA-PSI 12000-20 USV)
