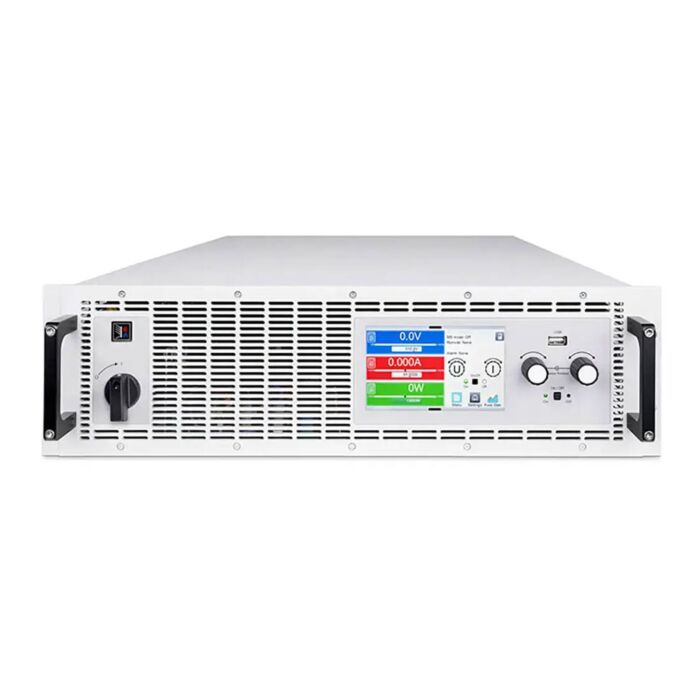

Elektro-Automatik PSI 11500-30 USV Laboratory power supply; PSI 11500-30 3U US208V 15000W; 1500 V/ 30 A; US208V

The EA-PSI 11500-30 3U is a 15 kW high-efficiency programmable DC power supply from EA Elektro-Automatik capable of delivering up to 1500V and 30A.

The EA PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series.

• Voltage Range: 0 V to 1500 V
• Current Range: 0 A to 30 A
• Power Output/Input: 15,000 W
• Up to 96% efficiency in discharge mode, feeding energy back to the grid to reduce costs and heat

Applications

• Component Testing
• Emulating DC Sources
• Smart Grid Integration

Each Unit Includes

• Laboratory Power Supply (EA-PSI 11500-30 USV)
