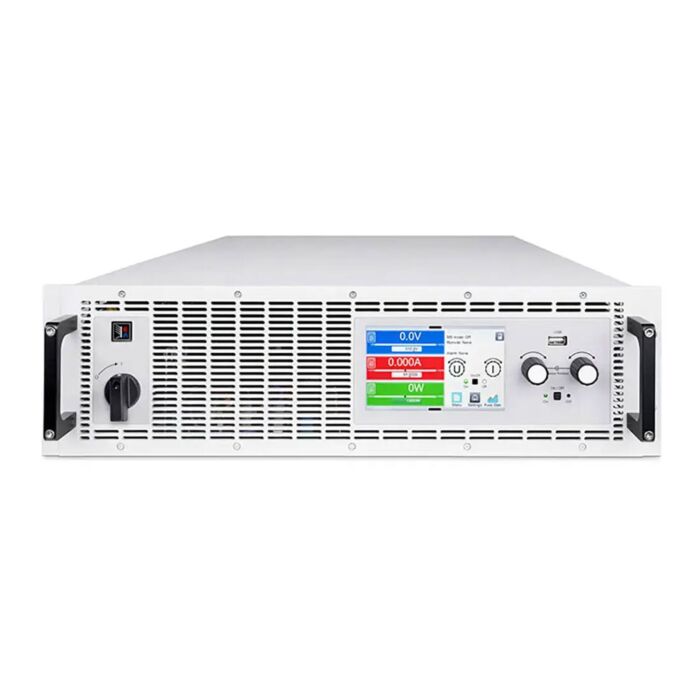

The Elektro-Automatik EA-PSB 12000-20 3U is a 15,000W programmable bi-directional DC laboratory power supply and regenerative electronic load in a single 3U rackmount chassis.
The EA 20000 Series and 10000 Series bidirectional DC power supplies bring a host of capabilities and efficiencies. Bidirectional regenerative supplies are more cost-effective and environmentally friendly because they recover energy and feed it back into the grid with >96% efficiency to reduce heat, noise and HVAC costs. True autoranging delivers maximum power across a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
20000 Series models offer 3 independent channels, fast 1ms response times, and integrated safety sense functionality for sensitive applications. EA supplies can parallel easily up to 3.84MW in output power, at up to 2000VDC.
- Voltage Range: 0 V to 2000 V
- Current Range: 0 A to 20 A
- Power Output/Input: 15,000 W
- Up to 96% efficiency in discharge mode, feeding energy back to the grid to reduce costs and heat
- Acts in two quadrants, absorbing power during load/sink operation and feeding up to 94.5%+ of that energy cleanly back into the local AC grid
Applications
- Battery Discharge & Charge Testing
- Inverter & Rectifier Testing
- Energy Recovery
- Transient & Dynamic Response
Each Unit Includes
- Bidirectional laboratory power supply (PSB 12000-20 USV)
