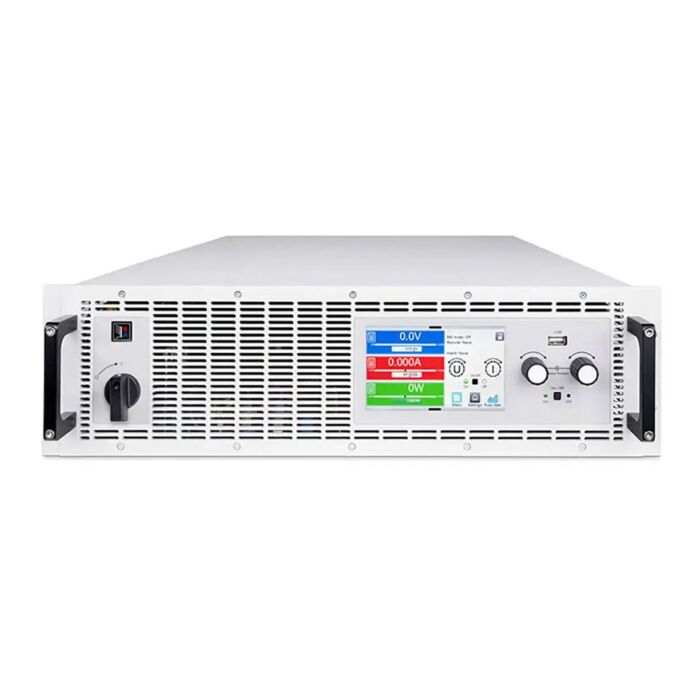

Elektro-Automatik PS 10500-90 USV Laboratory power supply; PS 10500-90 3U US208V 15000W; 500 V/ 90 A; US208V

The Elektro-Automatik EA-PS 10500-90 3U is a high-performance, 15kW programmable DC power supply designed for industrial and laboratory testing.

The EA PS programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC.

• Voltage Range: 0 V to 500 V
• Current Range: 0 A to 90 A
• Power Output/Input: 15,000 W
• Up to 96% efficiency in discharge mode, feeding energy back to the grid to reduce costs and heat

Applications

• Research and Development (R&D) Laboratories
• Automotive and EV Testing
• Industrial Manufacturing and Burn-In Testing
• Alternative Energy & Photovoltaics
• Electroplating and Coating

Each Unit Includes

• Laboratory Power Supply (EA-PS 10500-90 USV)
