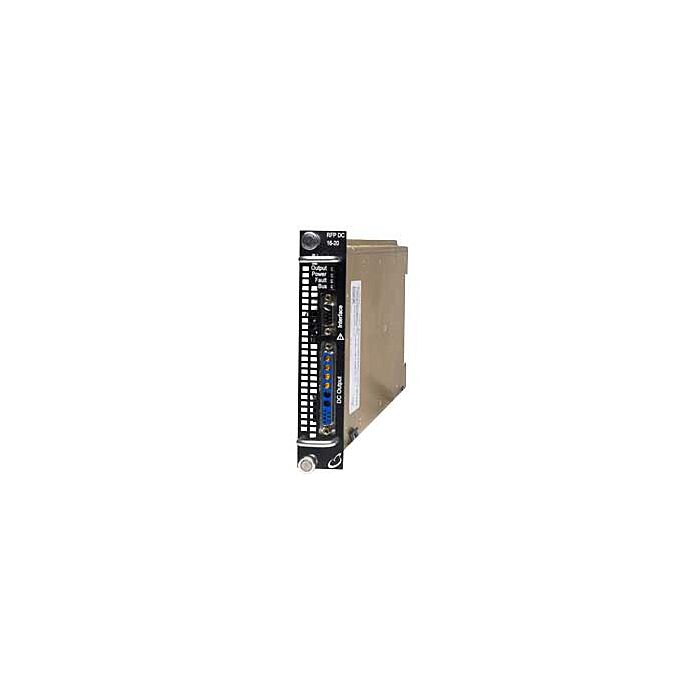

The Low Power DC supplies of the ReFlex Power (RFP) system iare rated at 330W, They are part of a modular family of power assets that integrate into the RFP Mainframe to provide a wide range of features, functionality, and extensive configurability and adaptability.
The modules can be programmed to operate as standalone assets, or in combinations of parallel, series, and series / parallel groups to extend their voltage, current, and power ratings.
The DB-9 connector on the front panel of each module provides variety of hardware interface lines. Included are Direct Fault Interrupt (DFI), Remote Inhibit (RI) and Trigger IN / Trigger OUT signals. Safety, ease of integration and functionality are significantly enhanced by these functions.
The DFI signal can be programmed to provide shutdown of modules in fault groups established by the user.
Used together or individually, these signals can be utilized to improve system performance, increase test through-put, reduce system idle time and assure the highest level of safety for the Device Under Test.
RFP system of DC power supplies brings true modularity to DC power assets, and makes possible a high degree of configurability and adaptability through a mainframe-based architecture. The mechanical design is ruggedized for harsh environments, including mobile applications, as well as general-purpose industrial and laboratory rack-mount ATE.
An advanced thermal design features integral, variable speed fans. Cooling performance scales based upon the complement of modules in the Mainframe and their output loading. This feature conserves energy, minimizes audible noise and enhances system reliability.
- 330 W
- 16Vdc
- 20.6A
- Output Relay (1G)
- firmware V2
- Near Linear Performance
- Truly Modular
- ≥0.95 PFC
- Digital control loop technology
- High Power Density (3.5 watts/cubic inch)
- "Virtual Assets" by: Series operation Parallel operation Combined operation with loads
- Precision Hardware & Software Triggers
- Simple integration
