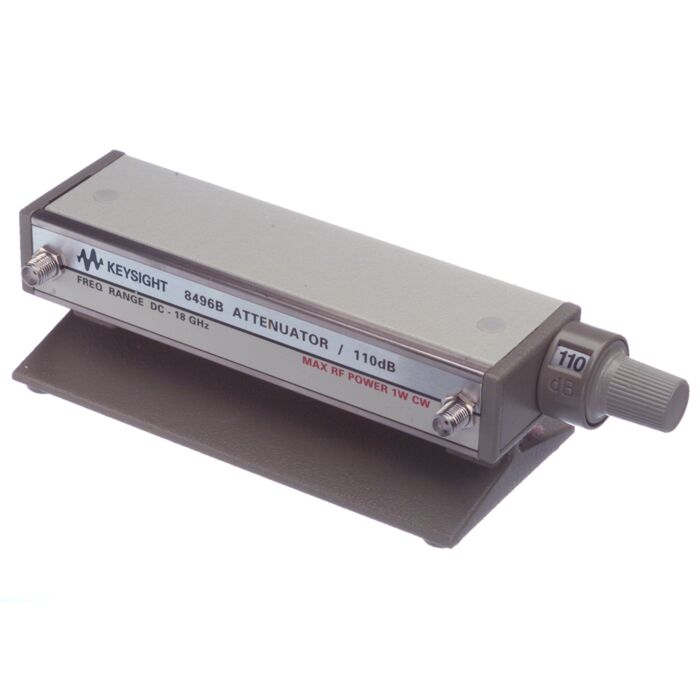

Keysight 8496B-001 Type N (F) Connectors
Type N(F)Connectors
Order #: 8496B-001
Mfg #: 8496B-001
Call for price
Call for price
Call for price
Call for price
Availability: Ships in 4-6 weeks
Product Highlights
- Frequency range: dc to 18 GHz
- Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 100 W (peak)
- Connect in series with 11716A Attenuator Interconnect Kit, Type-N
