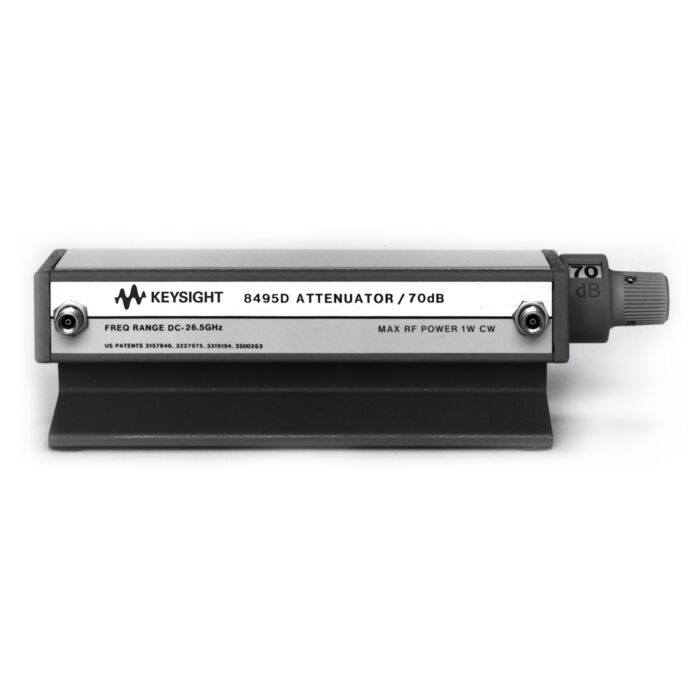

Keysight 8495D Manual Attenuator, 26.5GHz, 70dB, 10dB Steps
Manual Attenuator,26.5GHz,70dB 10dB Steps

Order #: 8495D

Mfg #: 8495D

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,383.00

Keysight 8495D Manual Attenuator, 26.5GHz, 70dB, 10dB Steps

Manual Attenuator,26.5GHz,70dB 10dB Steps

Order #: 8495D

Mfg #: 8495D

Loading...
Print Save Item Compare
$2,383.00
Register to view exclusive member pricing
Availability: Ships in 4-6 weeks

 Ships Free Over $100

This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Frequency range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
  • Maximum SWR: 1.6 to 12.4 GHz, 1.9 to 18 GHz, 2.2 to 26.5 GHz
  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: 3.5 mm female
