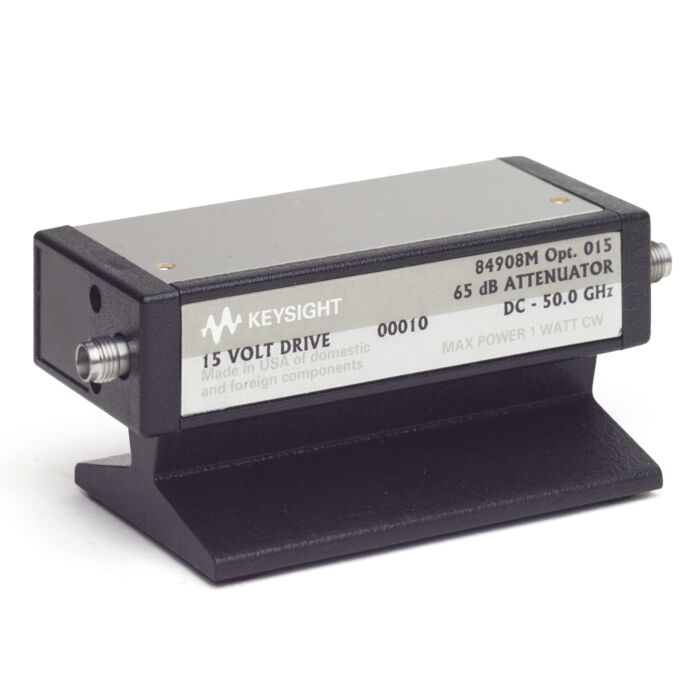

Keysight 84908M Programmable Step Attenuator, 50GHz, 65dB, 5dB Steps
Programmable Step Attenuator 50GHz,65dB,5dB Steps

Order #: 84908M

Mfg #: 84908M

Questions about availability or need help? Contact Us:

(800) 633-0561
$7,424.00

Keysight 84908M Programmable Step Attenuator, 50GHz, 65dB, 5dB Steps

Programmable Step Attenuator 50GHz,65dB,5dB Steps

Order #: 84908M

Mfg #: 84908M

Loading...
Print Save Item Compare
$7,424.00
Register to view exclusive member pricing
Availability: Ships in 4-6 weeks

 Ships Free Over $100

This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Superior RF Performance
  • Frequency range: dc to 50 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz (dc to 40 GHz), 3.0 (to 50 GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz, 3.0 to 50 GHz
  • Repeatability and Life Span
  • Repeatability life: 0.03 dB (typical)
  • 5 million cycles per section
  • Power Handling
  • Maximum RF input power: 1 W (average), 50 W (peak)
  • Features
  • Connector type: choice of 2.4 mm female, 2.45M mm male/female
  • Programming connector: 10-pin sockets
