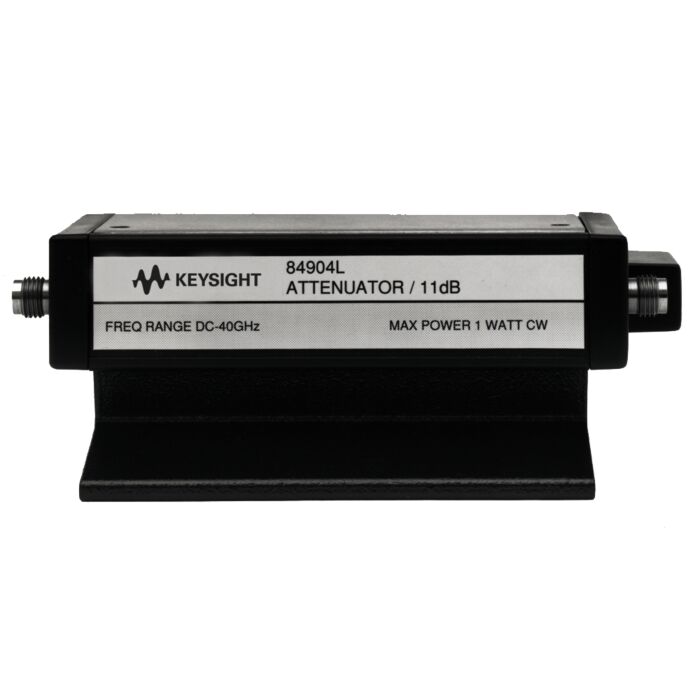

Keysight 84904L Programmble Attenuator, 40GHz, 11dB, 1dB Steps

Order # 84904L | Mfg # 84904L
$6,423.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • Frequency range: dc to 40 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz
  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section
  • Maximum RF input power: 1 W (average), 50 W (peak) Connector type: 2.4 mm female, optional 2.4 mm/2.92 mm male/female
  • Programming connector: 10-pin sockets

Technical Resources

Keysight Technologies Agilent 84904, 6, 7k/L Programmable Step Attenuators Datasheet
