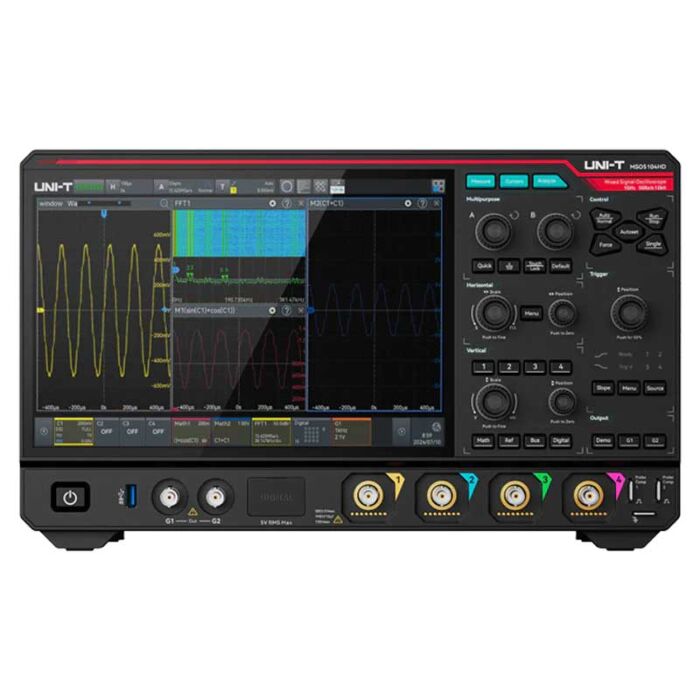

The UNI-T MSO5104HD high-resolution mixed signal oscilloscope delivers exceptional measurement precision and versatility for professionals requiring advanced signal analysis capabilities. Featuring a powerful 1GHz bandwidth, 5GSa/s real-time sampling rate, and 12-bit vertical resolution, this instrument provides the clarity and detail needed for today's complex electronic designs. With the innovative Ultra Phosphor 3.0 technology achieving an impressive 1,500,000 wfms/s capture rate and 256 levels of color temperature display, the MSO5104HD excels at capturing elusive signal anomalies that other oscilloscopes might miss.
Engineered for modern test environments, the MSO5104HD combines 4 analog channels and 16 digital channels with up to 500 Mpts memory depth, while integrating nine instruments into one cost-effective package. The intuitive 10.1-inch capacitive multi-touch screen with gesture support streamlines workflow and improves productivity. Whether working in power electronics, semiconductor testing, or advanced R&D applications, the MSO5104HD provides the measurement accuracy, analysis capabilities, and intuitive operation needed to solve the most challenging signal integrity problems.
MSO5000HD series high-resolution oscilloscope has the maximum bandwidth of 1 GHz, the maximum sampling rate of 5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the memory depth of up to 500 Mpts. MSO5000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,500,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurement and mathematical operations. MSO5000HD series features a 10.1-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user.
- Professional-Grade 12-bit Resolution - 16x higher quantization levels than traditional 8-bit oscilloscopes for superior waveform detail
- High-Performance Acquisition - 1GHz bandwidth, 5GSa/s real-time sampling, and 500 Mpts deep memory
- Ultra Phosphor 3.0 Technology - Exceptional waveform capture rate of 1,500,000 wfms/s with 256 color gradations
- Mixed Signal Analysis - 4 analog channels plus 16 digital channels for comprehensive system debugging
- Nine-in-One Instrument Integration - Complete test solution including oscilloscope, logic analyzer, spectrum analyzer, and more
- Integrated Signal Generator - Built-in 50MHz dual-channel function/arbitrary waveform generator
- Comprehensive Bus Analysis - Extensive protocol triggering and decoding options for computer, automotive, and aerospace applications
- Advanced Triggering - Zone trigger capabilities for isolating difficult-to-capture signals
- Multifaceted Measurements - 54 automatic parameter measurements with statistical analysis
- Responsive Touch Interface - 10.1-inch HD capacitive touch screen with intuitive gesture controls
- Extensive Connectivity - USB, LAN, HDMI, and WiFi interfaces for flexible test environment integration
- Enhanced FFT Analysis - Up to 4M point FFT for detailed frequency domain analysis
Applications
- Embedded / Microcontroller / FPGA Systems
- Power Electronics & Power Supply Design
- Analog Mixed-Signal Circuit Debugging & Characterization
- Automotive / Automotive Electronics / Vehicle Network Systems
- Communication / Serial Bus & Interface Testing
- Research, Education & Instruction Labs
- Semiconductor / IC / Component Characterization
- EMI / Noise / Signal Integrity Analysis
Each Unit Includes
- 1 - 1GHz, 4-Channel, 5 GSa/s High-Resolution Mixed Signal Oscilloscope (MSO5104HD)
- 4 - 500MHz Passive Probes (500 MHz, 10:1) (UT-P07A)
- 1 - USB Cable (UT-D30)
- 1 - BNC-BNC Cable (UT-L45)
- 1 - Alligator Leads Set (UT-L02A)
- 1 - Power Cord
- 1 - Calibration Certificate
