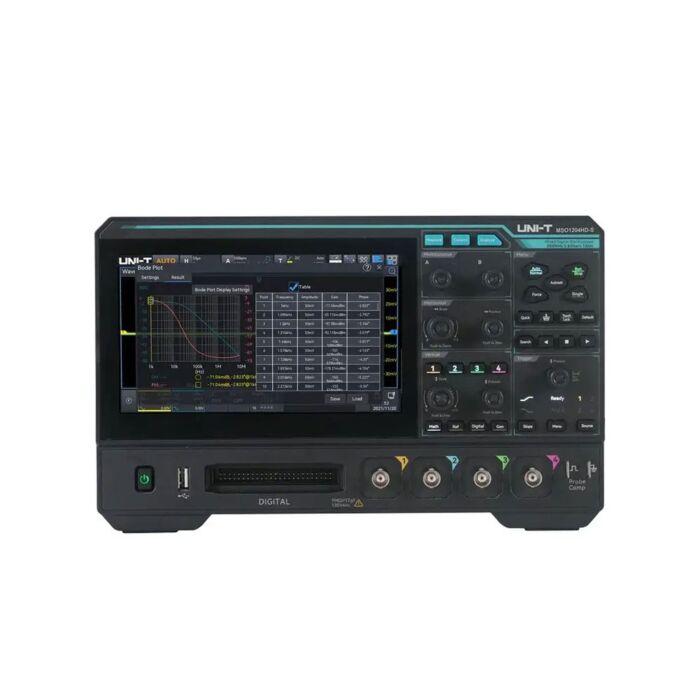

The UNI-T MSO1254HDS is a 250 MHz mixed signal oscilloscope with integrated 25 MHz signal generator, 12-bit high-resolution acquisition, and 4+16 channel mixed-signal input-all in a compact, field-ready form factor. With real-time 2.5 GSa/s sampling, Ultra Phosphor 3.0, and deep 100 Mpts memory, this oscilloscope delivers industry-leading waveform capture, signal generation, and analysis in a single instrument.
Ideal for engineers working in embedded systems, analog circuit design, power electronics, and lab instruction, the MSO1254HD-S supports protocol decoding, spectrum analysis, Bode plot functionality, and optional power analysis for switching and energy diagnostics.
MSO1000HD series high-resolution oscilloscope has the maximum bandwidth of 250 MHz, the maximum sampling rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the storage depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware-accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurements and mathematical operations. MSO1000HD series features a 7-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience
- Integrated 25 MHz Arbitrary Waveform Generator - Built-in stimulus source with 14-bit resolution
- 250 MHz Analog Bandwidth - Clean signal fidelity for analog, digital, and RF subsystems
- 12-bit ADC Resolution - See what 8-bit scopes miss with 4096 vertical levels
- 2.5 GSa/s Sampling - Real-time acquisition for high-speed analysis
- 4+16 Channels - Time-correlated analog and digital signal capture
- Ultra Phosphor 3.0 - Up to 1M wfms/s sequence capture, 256-level grading
- Bode Plot + PSRR Analysis - Visualize frequency and phase response directly
- Standard Protocol Decoding - UART, SPI, I2C, CAN, CAN-FD, LIN, Audio
- FFT Spectrum Tools - 1Mpt FFT, 4 traces, peak detection, and waterfall
- Power Analysis Option - Unlock switching loss, ripple, and harmonic tests
- USB-C PD Powered - Efficient, portable, and easy to deploy
Applications
- Embedded systems & mixed-signal design
- Protocol / serial-bus debugging
- Power electronics / switching circuits
- Signal integrity / analog circuits
- Educational / laboratory / teaching
- Mixed-signal prototyping / validation
- Diagnostics / repair & maintenance
Each Unit Includes
- 1 - 250MHz, 4-Channel, 2.5 GSa/s Mixed Signal Oscilloscope with Built-In 25 MHz Waveform Generator (MSO1254HD-S)
- 4 - Passive Probes (200 MHz, 10:1) (UT-P06)
- 1 - USB 2.0 Cable (UT-D14)
- 1 - Power Adapter (USB-C)
- 1 - Calibration Certificate
- 1 - Quick Start Guide
