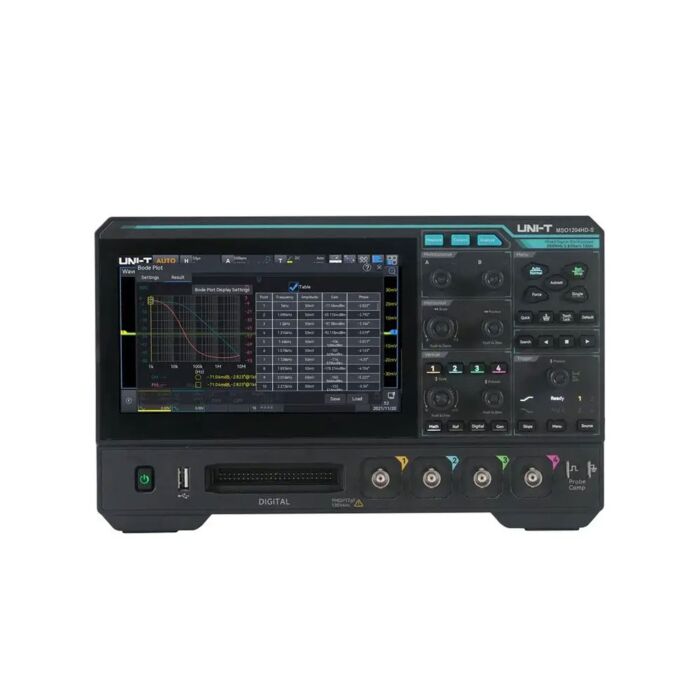

The UNI-T MSO1154HDS is a 150 MHz high-resolution mixed signal oscilloscope with an integrated 25 MHz arbitrary waveform generator, designed for engineers, educators, and embedded system developers seeking an all-in-one measurement and signal stimulation platform.
It features 12-bit vertical resolution, 2.5 GSa/s sampling rate, and 100 Mpts memory depth across four analog and sixteen digital channels. With built-in signal generation, Ultra Phosphor 3.0 technology, and comprehensive protocol decoding, the MSO1154HD-S enables in-depth analysis and real-time debugging from one compact instrument.
MSO1000HD series high-resolution oscilloscope has the maximum bandwidth of 250 MHz, the maximum sampling rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the storage depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, enhanced resolution (ERES), hardware-accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurements and mathematical operations. MSO1000HD series features a 7-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience
- Built-In 25 MHz Waveform Generator
- 12-bit Vertical Resolution - 4096 quantization levels for accurate waveform analysis
- 150 MHz Bandwidth - Ideal for general embedded, analog, and digital system debugging
- 4+16 Channels - Mixed signal capability with 4 analog + 16 digital inputs
- Ultra Phosphor 3.0 - Up to 1,000,000 wfms/s capture rate and 256 color grading
- 9-in-1 Integration - Oscilloscope, logic analyzer, protocol decoder, spectrum analyzer, and more
- 7 inch Touchscreen - 1024x600 capacitive display with gesture support
- Standard Protocol Decode - UART, SPI, I2C, CAN, CAN-FD, LIN, Audio
- Advanced Triggering - Zone trigger, setup/hold, runt, pattern, and delay triggers
- Optional Power Analysis - Unlock advanced switching loss, ripple, harmonic tools
- USB-C Powered - PD-compatible for lab or portable setups
Applications
- Embedded systems & mixed-signal design
- Protocol / serial-bus debugging
- Power electronics / switching circuits
- Signal integrity / analog circuits
- Educational / laboratory / teaching
- Mixed-signal prototyping / validation
- Diagnostics / repair & maintenance
Each Unit Includes
- 1 - 150MHz, 4-Channel, 2.5 GSa/s Mixed Signal Oscilloscope with Built-In 25 MHz Waveform Generator (MSO1154HD-S)
- 4 - Passive Probes (200 MHz, 10:1) (UT-P05)
- 1 - USB 2.0 Cable (UT-D14)
- 1 - Power Adapter (Type-C)
- 1 - Calibration Certificate
- 1 - Quick Start Guide
