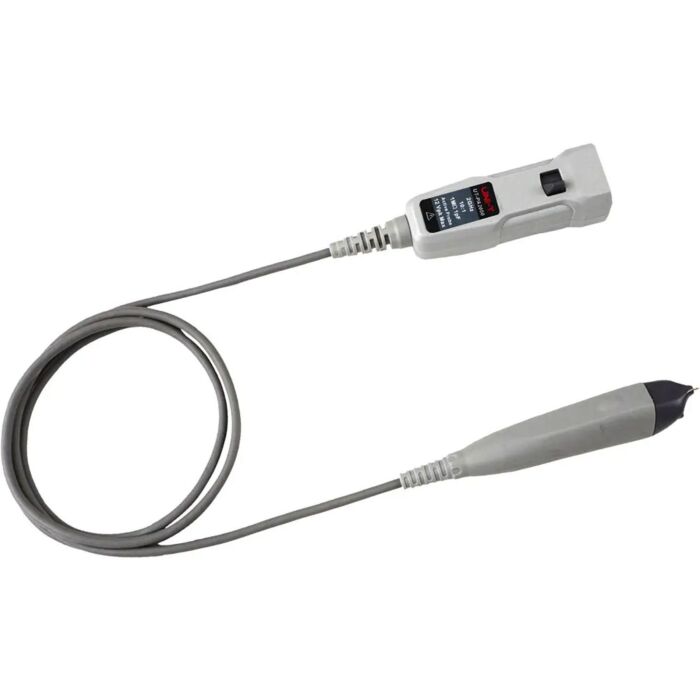

The UNI-T UTPA1000 is a high-precision 1 GHz active single-ended probe designed for high-speed digital signal acquisition and analysis with exceptional accuracy. It features low input capacitance (≤1.3 pF), fast rise time (≤350 ps), and seamless integration with UNI-T oscilloscopes for signal integrity testing and protocol analysis.
The UNI-T UT-PA1000 is designed to capture small signals with exceptional accuracy. Whether performing signal integrity analysis, high-speed protocol testing, or bus analysis, the UT-PA1000 offers precision, reliability, and seamless oscilloscope integration - making it ideal for both educational labs and advanced engineering environments.
- Designed for Performance and Durability
- Compact probe head ideal for probing small components
- Low power consumption (0.5 W)
- Robust 1.2 m probe cable
- Wide operating environment: 0°C to 40°C, up to 4600m altitude
Applications
- High-speed digital signal acquisition
- Signal integrity analysis
- Protocol conformance testing
- Educational training on high-frequency measurement
Each Unit Includes
- 1 - Active Single-Ended Probe, 1GHz Bandwidth (UT-PA1000)
- 2 - Gold-Plated Hooks (Black)
- 5 - Ground Blades
- 2 - Ground Flexible Tips
- 20 - Rigid Tips
- 2 - Right-Angle Ground Wires
- 1 - Tip Box and Accessory Box
- 1 - Pair of Ceramic Tweezers
- 8 - Color ID Rings
