Siglent SPL2016

Order # SPL2016 | Mfg # SPL2016
$546.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

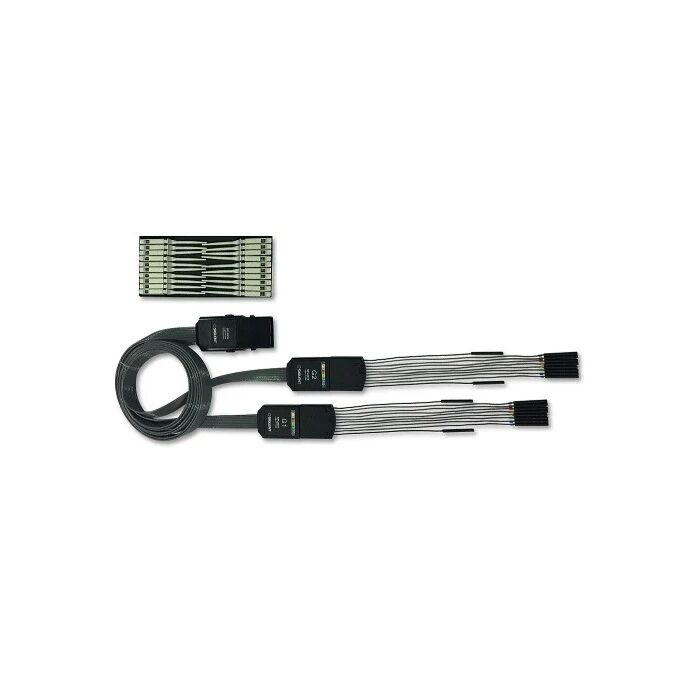

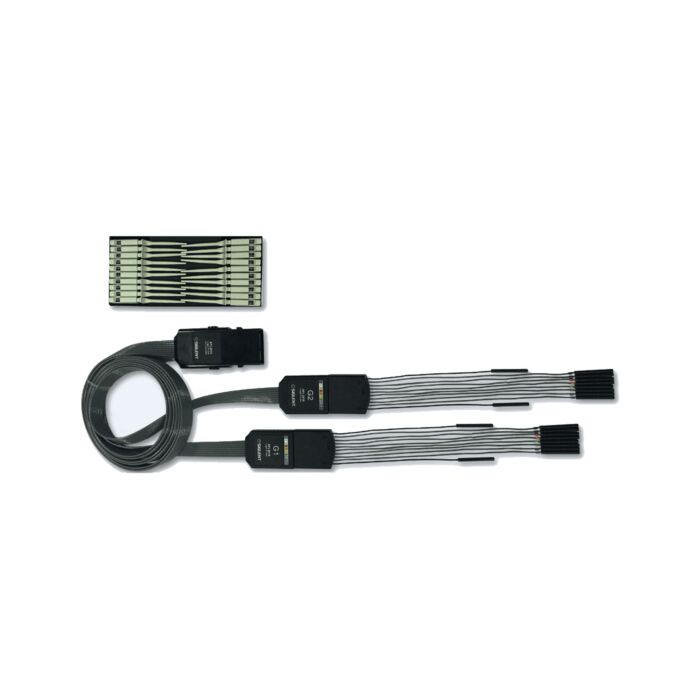

Siglent SPL2016 16 Channel logic probe module HARDWARE ONLY no license. This probe can be used for the SDS2000X and SDS5000X Series oscilloscopes.

Specifications

Parameters: SPL2016
Channels 16
Input Impedance 100 KΩ||8 pF
Max. Input Voltage ±50 V peak
Threshold Groupings Pod 2: D15-D8; Pod 1: D7-D0
Threshold Selections TTL (1.5 V), COMS (2.5 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V)
User defined threshold range ±3 V in 10 mv steps
Threshold Accuracy ±?3%*Threshold+200 mv?
Input Dynamic Range ±20 V
Min. Input Voltage Swing 800 mVpp
Max. Input Frequency Probe: 150 MHz; Line: 50 MHz
Min. Detectable Pulse Width 3.3 ns
Channel Skew ±(1 digital sample interval)
