Order #: RPL2316
Mfg #: RPL2316

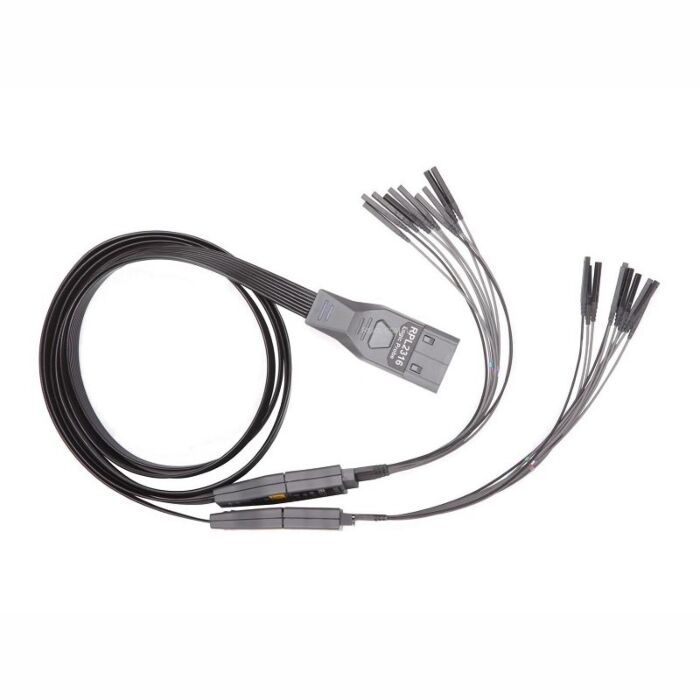

Being a high performance logic probe, RPL2316 connects the digital buses and signals under test to the MSO4000 series digital oscilloscope. RPL2316 separates 16 digital channels into two branch headers, called channel group. Each header includes 8 signal channels (D0-D7 and D8-D15) plus 12 ground channels. All the channels are marked with different colors and numbers (or letters) on the probe adaptor label to identify different channels. RPL2316 provides 8 signal leads and 12 ground leads for each header to realize flexible connection of signals and reference ground and provide better signal integrity. Note: in any case, make sure that the connection between probe adapter and the channel group is reliable.
- logic analyser probe set for Rigol MSO2000A series and Rigol MSO4000 series mixed signal oscilloscopes
Each Set Includes
- 1-off parallel data cable 1-off active logic head 20-off data leads 20-off grabbers 1-off soft carry bag
