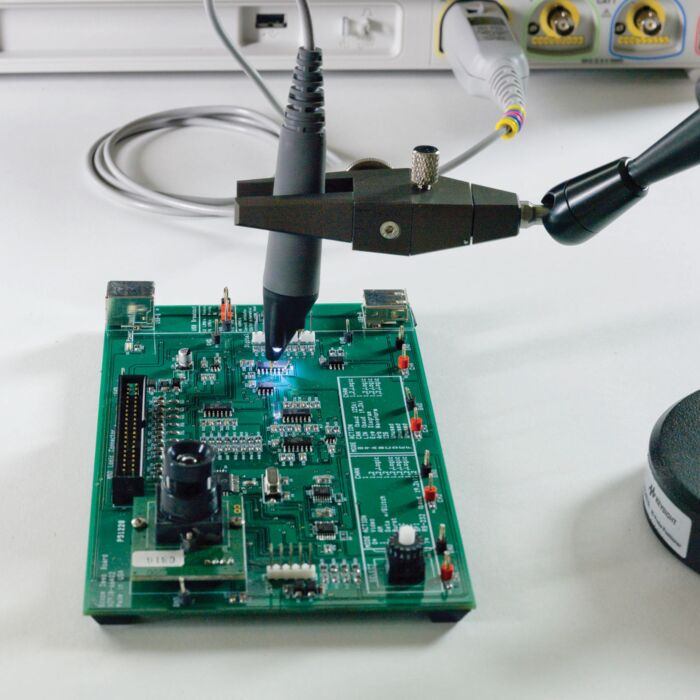

Keysight N2795A Active Probe, 1GHz, Single ended

Order # N2795A | Mfg # N2795A
$1,844.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • 1 GHz bandwidth (-3dB)
  • High resistance (1Mohm) and low capacitance (1 pF) input for low loading
  • Wide input dynamic range (±8V) and offset range (±8V)
  • Built-in headlight for better visibility while probing
  • Includes various probe tip accessories
  • Direct connection to AutoProbe interface (no power supply required)
  • Provides full system bandwidth with InfiniiVision and Infiniium oscilloscopes with bandwidths up to 500 MHz
  • For use with Agilent InfiniiVision 3000 X, 5000, 6000, 7000 (except 6000 100MHz) and Infiniium 9000, 90000 Series
