The UTD2000CEX+ Series digital storage oscilloscope is an entry-level bench solution that meets the key requirements of basic measurement. The simple and clear front panel is designed for easy operation. The UTD2000CEX+ Series has 50MHz /100MHz/200MHz bandwidth, real-time sampling rate of 1GSa/ s, dual channel and other performance output, and storage depth of 64kpts. With extensive application scenarios, this model is suitable for communication, semiconductor, computer, instrument, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education and more.

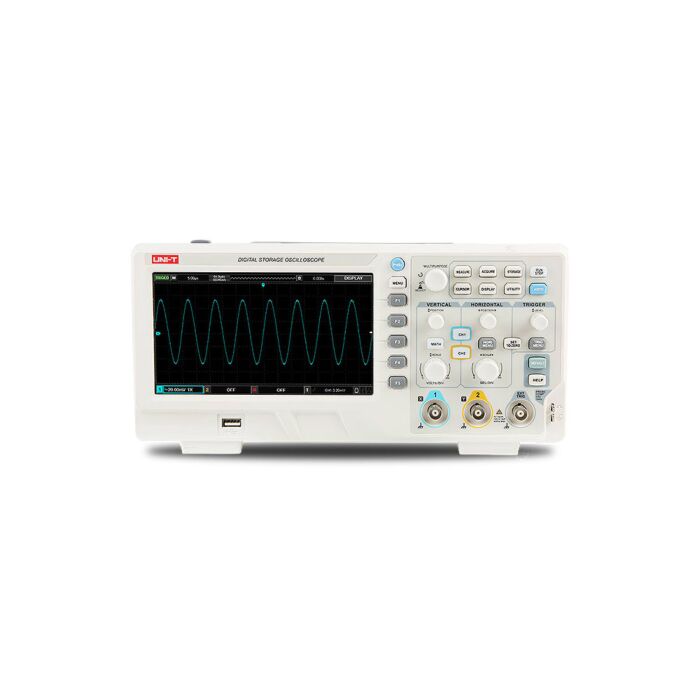

The UNI-T UTD2202CEX+ Digital Storage Oscilloscope stands out in the realm of electrical measurement. Offering a robust 200MHz bandwidth and dual analog channels, this oscilloscope is designed to meet the intricate needs of electrical engineering professionals and educators. Its 1GSa/s real-time sample rate coupled with a maximum memory depth of 64kpts makes it a reliable choice for detailed waveform analysis.
- 200MHz analog bandwidth and two analog channel inputs
- Maximum real-time sample rate of 1GSa/s
- Maximum memory depth of 64kpts
- Maximum waveform capture rate of 5000wfms/s
- Vertical Scale @1MΩ: 1V/div to 20V/div
- Math Function for Complex Calculations
- Equipped with a variety of trigger options: Edge, Pulse Width, Video, Slope, and Alternating Trigger
- Zoom Function for In-Depth Analysis: Examine waveforms at various levels of detail
- XY Mode (Lissajous graphics mode) offers quick and accurate measurement of phase differences between signals
- AUTO button - automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals
- Excels in FFT spectral analysis, converting time-domain signals into their frequency-domain elements
- Automatic measurement of 34 waveform parameters
- Interface: USB Device, Pass Test Output (BNC), LAN
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Educational Institutions and Laboratories
- Research and Development (R&D)
- Maintenance and Troubleshooting
- Product Development and Prototyping
- Signal Integrity and Communication Systems
Each Unit Includes
- 1 - 200MHz, 2-Channel, 1GSa/s Digital Storage Oscilloscope (UTD2202CEX+)
